ACL 2位3通直动式阀Direct Acting 312

ACL 2位3通直动式阀Direct Acting 312

说明

电磁阀3通直接作用提升阀类型

法兰固定

构造

车身黄铜

电枢管黄铜

柱塞和芯AISI 430FR .

弹簧AISI 302

密封材料NBR-FPM-EPDM

功能

最大允许压力PS 50bar口

最大流体粘度25cSt ( mm2/s )

环境温度:根据线圈,从-10°C到+80°C

通用安装位置

DESCRIPTION

Solenoid valve 3 way direct acting poppet type

Flange fixing

CONSTRUCTION

Body Brass

Armature tube Brass

Plunger and core AISI 430FR

Springs AISI 302

Seal material NBR - FPM- EPDM

FEATURES

Maximum allowable pressure PS 50bar]

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

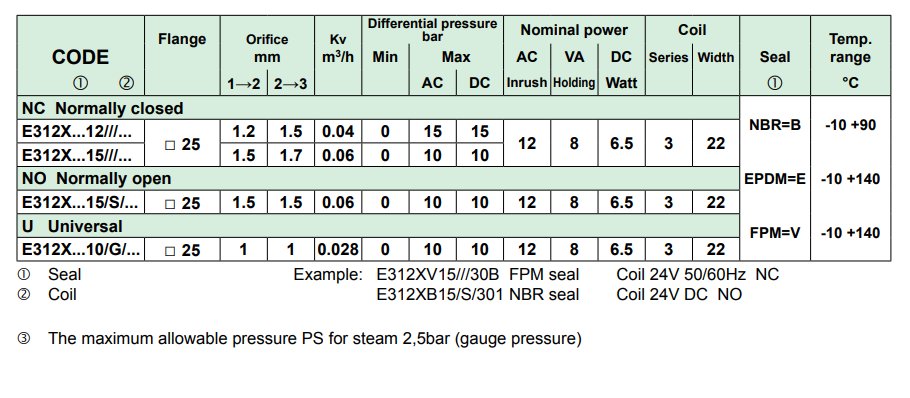

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

312 NO

25 Flangia base

1.5

1.5

0.06

0

10

10

12

8

6.5

22

3

NBR EPDM FPM

-10 +90 -10 +140 -10 +140
