ACL 2位3通直动式阀Direct Acting 322-325 320系列

ACL 2位3通直动式阀Direct Acting 322-325  320系列

说明

电磁阀3通直接作用提升阀类型。

平衡密封和特殊结构允许大流量。

电磁阀可以用作常闭式,

常开、混合或转向。

应要求配备位置检测器(带led )。

构造

车身阳极氧化铝( 320321322系列)

AISI 303 ( 323324325系列)

电枢管AISI 303

柱塞和芯AISI 430FR

弹簧AISI 302

密封材料FPM

功能

最大允许压力PS 50bar

最大流体粘度25cSt ( mm2/s )

环境温度:根据线圈，从-10°C到+80°C

通用安装位置

选项

带2 mt预接线连接电缆的位置检测器2线(选项/P2 )

带2 mt预接线连接电缆的位置检测器3线(选项/P3 )

带3针M8接头的位置检测器(选件/PC )

DESCRIPTION

>

Solenoid valve 3 way direct acting poppet type.

The balanced seal and the special construction allows a big

flow.

The solenoid valve can be used as normally closed,

normally open, mixing or diverting.

On request with position detector (with led).

CONSTRUCTION

Body Anodized aluminium (series 320,321,322)

AISI 303 (series 323,324,325)

Armature tube AISI 303

Plunger and core AISI 430FR

Springs AISI 302

Seal material FPM

FEATURES

Maximum allowable pressure PS 50bar

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

OPTIONS

Position detector with 2 mt prewired connection cable 2-wires

(option /P2)

Position detector with 2 mt prewired connection cable 3-wires

(option /P3)

Position detector with 3-pin M8 connector to be wired (option

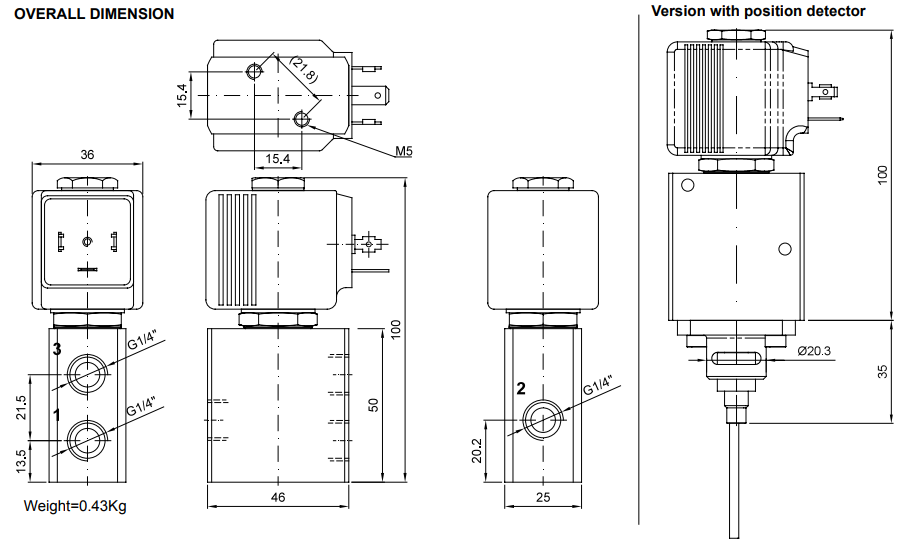

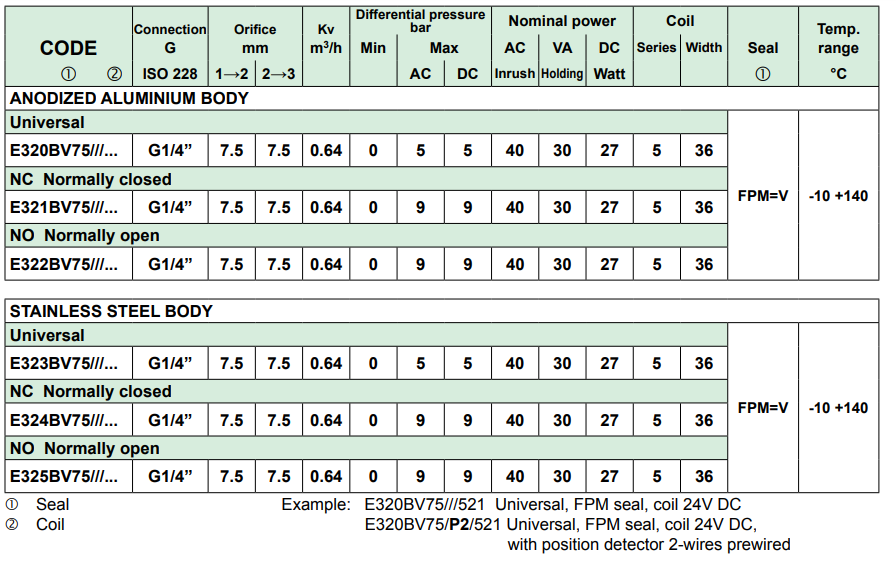

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

322-325 NO - Series 320

G 1/4

7.5

7.5

0.64

0

9

9

40

30

27

36

5

FPM

-10 +140
