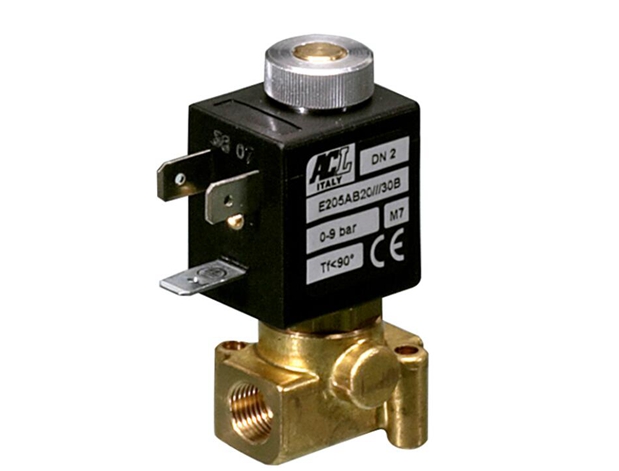

ACL 2位3通直动式阀Direct Acting 307

ACL 2位3通直动式阀Direct Acting 307

电磁阀3通常开

直接作用提升阀型

构造

车身黄铜

电枢管黄铜

柱塞和芯AISI 430FR

弹簧AISI 302

密封材料NBR-FPM-EPDM

功能

最大允许压力PS 50barƒ

最大流体粘度25cSt（mm2/s）

环境温度：根据线圈，从-10°C到+80°C

通用安装位置

选项：不锈钢电枢管

化学镀镍

7系列防爆线圈

符合ATEX-EExmII

带软管尾部连接的排气口

DESCRIPTION

Solenoid valve 3 way normally open

direct acting poppet type

CONSTRUCTION

Body Brass

Armature tube Brass

Plunger and core AISI 430FR

Springs AISI 302

Seal material NBR - FPM - EPDM

FEATURES

Maximum allowable pressure PS 50barƒ

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

OPTIONS: Stainless steel armature tube

 Electroless nickel plating

 Series 7 explosion proof coil according

 to ATEX - EExmII

 Exhaust port with hosetail connection

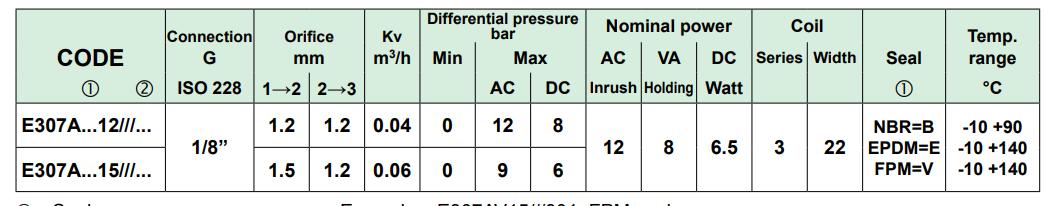

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

307

G 1/8

1.2 1.5

1.2 1.2

0.04 0.06

0 0

12 9

8 6

12

8

6.5

22

3

NBR EPDM FPM

-10 +90 -10 +140 -10 +140
