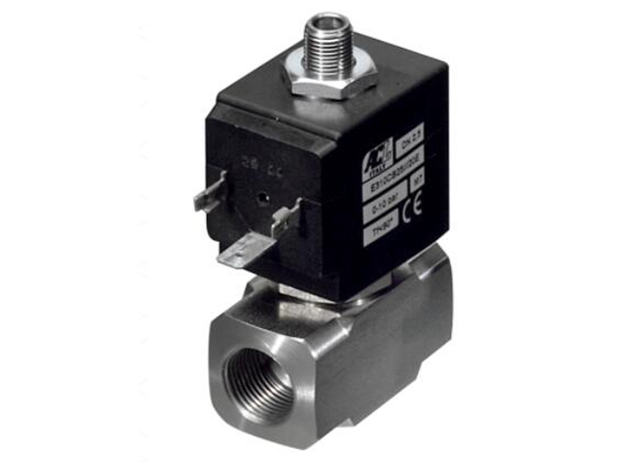

ACL 2位3通直动式阀Direct Acting 370

ACL 2位3通直动式阀Direct Acting 370

型号: 370

说明

电磁阀3通不锈钢AISI 316

直接作用提升阀型

构造

阀体AISI 316

电枢管AISI 316

柱塞和芯AISI 430FR

遮光环银色

弹簧AISI 316

密封材料NBR-FPM-EPDM-FFKM ( Kalrez )

功能

最大允许压力PS 80barJ

最大流体粘度25cSt ( mm2/s )

环境温度:根据线圈，从-10°C到+80°C

通用安装位置

TYPE: 370

DESCRIPTION

Solenoid valve 3 way in stainless steel AISI 316

direct acting poppet type

CONSTRUCTION

Body AISI 316

Armature tube AISI 316

Plunger and core AISI 430FR

Shading ring Silver

Spring AISI 316

Seal material NBR - FPM- EPDM- FFKM (Kalrez)

FEATURES

Maximum allowable pressure PS 80barD

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

370 NO

1/4

2.4

2.5

0.16

0

9

9

20

15

10

30

2

NBR FFKM EPDM FPM

-10 +90 -10 +180 -10 +140 -10 +140
