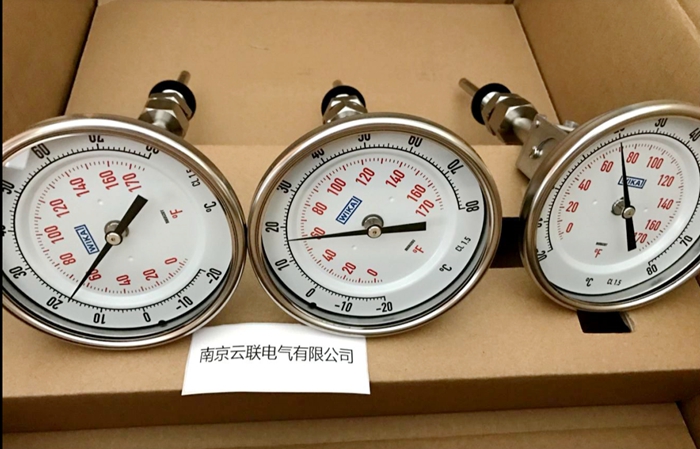

wika温度传感器设定和测量

wika温度传感器设定和测量

●送风或排风温度传感器

. 限定传感器,例如*低送风温度的设定

●参考传感器,例如房间温度的补偿随室外温度变化而按一定函数关系转换

. 露点温度传感器

●测量传感器,例如用于测量值的显示或者配套楼宇自控系统使用

设定元件的位置在面板里面。它包括6个插脚和一个短插头。它是用来选择所需的测量范围和激活测试功能。

不同的插头位置由以下不同的用处:

●用于温度测量范围:左边位置短插头(R1)= 0.. .50 °C中间位置短插头(R2)= -50.. .+50 °C (出厂设置)右边位置短插头(R3)=

-5...+35 °C

. 用于激活测试功能: :短插头在水平位置:信号输出会显示测试功能激活的值。

材质NTC 10K ,无源输出,温度可调范围: -50... .80度,法兰安装,传感器长度6000mm ;

1.风道温度传感器应用领域

用于采集风管内的空气温度

送风或排风温度传感器

限定传感器,例如总线低送风温度的设定

参考传感器,例如房间设定温度随室外温度变化而按-定的函数关系转换

测量传感器,测量值的显示或配套楼宇自控系统使用

2风道温度传感器产品特点

测量平均值来保证测量信号的可靠性,也保证了测量值不受测量点的选择和气流条件的影响

Wika temperature sensor setting and measurement

● Air supply or exhaust temperature sensors

Limiting sensors, such as setting low air supply temperature

● Reference sensors, such as room temperature compensation, are converted into a certain functional relationship with changes in outdoor temperature

Dew point temperature sensor

● Measurement sensors, such as those used for displaying measurement values or supporting building automation systems

Set the position of the component inside the panel. It includes 6 pins and a short plug. It is used to select the required measurement range and activate testing functions.

Different plug positions have different uses as follows:

Used for temperature measurement range: Short plug (R1) on the left position=0.. 50 ° C Short plug (R2) in the middle position=-50+ 50 ° C (factory setting) Short plug on the right side (R3)=

-5...+35 ° C

. Used to activate the testing function:: Short plug in horizontal position: The signal output will display the activated value of the testing function.

Material NTC 10K, passive output, temperature adjustable range: -50... 80 degrees, flange installation, sensor length 6000mm;

1. Application fields of air duct temperature sensors

Used to collect the air temperature inside the air duct

Supply or exhaust air temperature sensor

Limit sensors, such as setting the low supply air temperature on the bus

Reference sensors, such as room set temperature converted into a fixed function relationship with outdoor temperature changes

Measurement sensors, display of measured values or use in supporting building automation systems

Features of 2-channel temperature sensor products

Measuring the average value ensures the reliability of the measurement signal and also ensures that the measurement value is not affected by the selection of measurement points and airflow conditions
