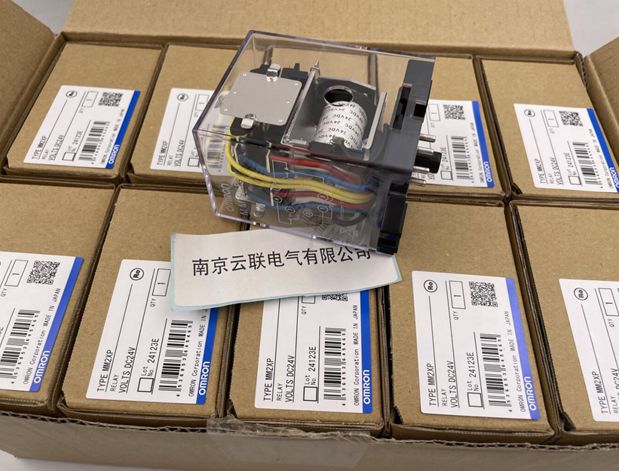

omron欧姆龙 继电器 MM2XP
详细介绍
omron欧姆龙 继电器 MM2XP
技术参数
| 品牌： | 欧姆龙 |
| 型号： | MM2XP-AC110V 通用继电器 |
| 批号： | 22+ |
| 数量： | 500 |
| RoHS： | 是 |
| 产品种类： | 电子元器件 |
| *小工作温度： | -10C |
| *大工作温度： | 100C |
| *小电源电压： | 2V |
| *大电源电压： | 8V |
| 长度： | 2.6mm |
| 宽度： | 8.9mm |
| 高度： | 1.1mm |

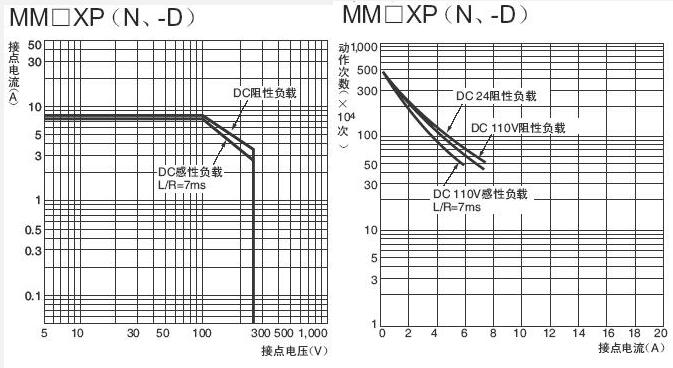

MM2XP接点电压*大值可以加DC250V，所以DC220V是可以使用的；但是考虑到继电器接点容量*大值为800W(阻性负载)，所以加上DC220V电压时，电流*大值应不超过（800/220）A；需要注意的是，该继电器额定负载是DC110V,7A；根据寿命曲线所示，长期工作在DC220V电压规格下，并且满负荷工作，将会缩短继电器使用寿命；继电器接点规格和寿命曲线图.Yunlian Electric quotation technical consultation email: njxj888@163.com
Can OMRON Omron relay MM2XP be added with DC220V?
The maximum voltage of MM2XP contact can be increased by DC250V, so
DC220V can be used; However, considering that the maximum capacity of the
relay contact is 800W (resistive load), when adding DC220V voltage, the
maximum current should not exceed (800/220) A; It should be noted that the rated
load of this relay is DC110V，7A; According to the life curve, long-term operation
under the DC220V voltage specification and full load operation will shorten the
service life of the relay; Relay contact specifications and life curve diagram
