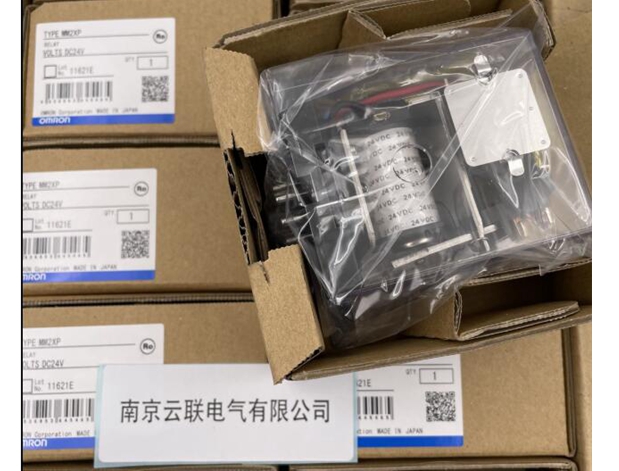

OMRON 欧姆龙继电器 MM2XP DC24

品牌:欧姆龙

产品名称:功率继电器

型号: MM2XP

分类:直流负载开关型。

构造:带外壳型,插座端子。

极数: 2极。

具有稳定的接触可靠性和高度耐用性的功率继电器。

安装、配线方便,操作简单。

接点结构类型丰富,并且可根据直流负载用、外露型和用途选择。

具有机械寿命500万次、电气寿命(额定负载时) 50万次的高耐久性能。

另备有二极管内置型以及符合电力用辅助继电器(JEC-174D)标准的型号。

Product characteristics

Product feature 1: Coil rated specification: DC24V 87mA

No action indicator light, no coil surge absorption function

Contact composition 2c, contact structure single contact, contact

material base metal Ag, surface treatment without treatment,

contact rated load DC110V 7A (resistance load), DC110V 6A

(inductive load (LR = 7ms), maximum switching currentAC: 7.5A,

DC: 7.5A, terminal structure plug-in terminal

Protective structure: locking type (with casing)

Terminal structures: plug-in terminals

Mass: approximately 225g

Product feature 2: Coil rated specification: DC24V 87mA

Coil resistance: 275 Q

Operating voltage: below 70%

Reset voltage: above 10%

Maximum allowable voltage: 110% of rated voltage

Power consumption: below 2.1W

Contact rated load: DC110V 7A (resistive load)

DC11 0V 6A (inductive load (I /R=7ms))
