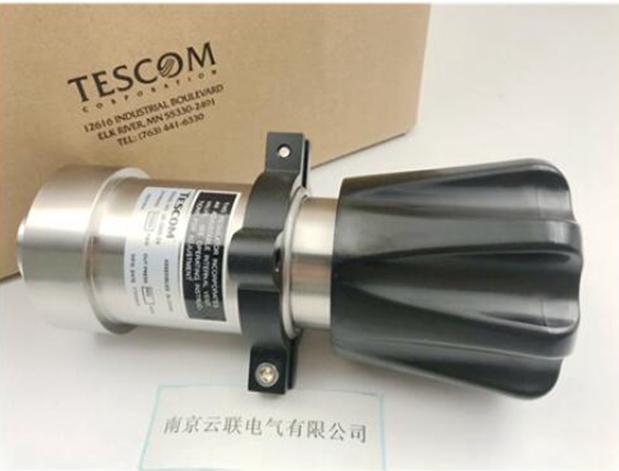

TESCOM减压阀pressure reducing valve26-1066-24

TESCOM减压阀pressure reducing valve26-1066-24

高压减小弹簧负载/气室负载/空压启动技术规格压力等级根据 ANSI/ASME B31.3标准出口压力 . . . . . . . . . . . . . . . . . . . . . . 见部件选择表泄漏：金属座 . . . 2 滴/分钟，粘度 150 SUS, 压力 2500 PSIG(-26 C 至 +73 C)❏ 接触介质的材料阀座、排气阀、主阀 . . . . . . . . . . .

高压减小

弹簧负载/气室负载/空压启动

技术规格

压力等级根据 ANSI/ASME B31.3标准

出口压力 . . . . . . . . . . . . . . . . . . . . . . 见部件选择表

泄漏：

金属座 . . . 2 滴/分钟，粘度 150 SUS, 压力 2500 PSIG

(-26° C 至 +73° C)

❏ 接触介质的材料

阀座、排气阀、主阀 . . . . . . . . . . . . . .见部件选择表

备用密封圈 . . . . . . . . . . . . . . . . . . . . . . . . . Teflon®

26-201X-XX . . . . . . . . . . . . . . . . . . . . . . . . . 青铜

*金属座无滤清器

有关其他材料及改动，请向工厂咨询,南京-云联-技术支持-库存-现货-报价。

❏ 重量（近似值） . . . . . . . . . . . . . . . . 5.5 磅 (2.5 kg)

quotation njxj888@163.com

TESCOM pressure reducing valve 26-1066-24

High pressure reducing spring load/chamber load/air pressure starting technical specifications Pressure level according to ANSI/ASME B31.3 standard outlet pressure see component selection table Leakage: metal seat 2 drops/minute, viscosity 150 SUS, pressure 2500 PSIG (-26 C to+73 C), material in contact with medium, valve seat, exhaust valve, main valve

High pressure reduction

Spring load/chamber load/air pressure start

technical specifications

Pressure rating according to ANSI/ASME B31.3 standard

Outlet pressure See component selection table

leak:

Metal seat 2 drops/minute, viscosity 150 SUS, pressure 2500 PSIG

(-26 ° C to+73 ° C)

Materials in contact with the medium

Valve seat, exhaust valve, main valve See component selection table

Spare sealing ring Teflon ®

26-201X-XX . . . . . . . . . . . . . . . . . . . . . . . . . bronze
