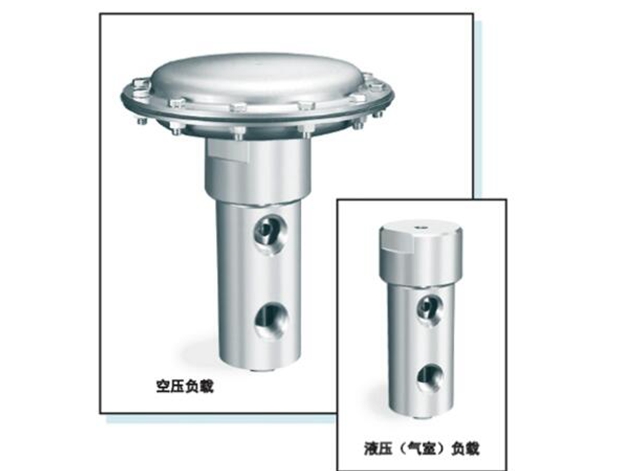

TESCOM液压阀hydraulic valve54-2800

TESCOM液压阀hydraulic valve54-2800

液压/高流量/高压

最大入口压力 5,000 PSIG/出口压力范围 5,000 以下

减压调节器

54-2800 系列

技术规格

❑ 工作参数

压力等级根据 ANSI/ASME B31.3标准

最大额定入口压力 . . . . . . . . . . . . . . . . .5000 PSIG

出口压力范围 . . . . . . . . . 50-1500, 200-5000 PSIG

设计试验压力为 . . . . . . . . . . . . 150% 最大额定压力

泄漏（最大值） . . . . . . . . . . . . . . . . . . . 2 滴/分钟,

条件：粘度 150 S.U.S. 压力 2500 PSIG

工作温度1 . . . . . . . . . . . . . . . . . -40° F 至 +225° F

(-40° C 至 +107° C)

额定流量：

主阀. . . . . . . . . . . . . . . . . . . . . . . . . . . Cv = 8.0

排气阀. . . . . . . . . . . . . . . . . . . . . . . . . Cv = 6.5

TESCOM hydraulic valve 54-2800

Hydraulic/High Flow/High Pressure

Maximum inlet pressure 5000 PSIG/outlet pressure range below 5000

Pressure reducing regulator

Yunlian Electric Technology Consulting

Quotation inquiry njxj888@163.com

TESCOM hydraulic valve

TESCOM hydraulic valve 44-5200

TESCOM hydraulic valve 54-2100

TESCOM hydraulic valve 54-2200

TESCOM hydraulic valve 54-2700

TESCOM hydraulic valve 54-2800

54-2800 series

technical specifications

Operating parameters

Pressure rating according to ANSI/ASME B31.3 standard

Maximum rated inlet pressure 5000 PSIG

Outlet pressure range 50-1500, 200-5000 PSIG

The design test pressure is 150% maximum rated pressure

Leakage (maximum value) 2 drops/minute,

Condition: Viscosity 150 S.U.S. Pressure 2500 PSIG

Working temperature 1- 40 ° F to+225 ° F

(-40 ° C to+107 ° C)

Rated flow rate:

Main valve Cv = 8.0

Exhaust valve Cv = 6.5
