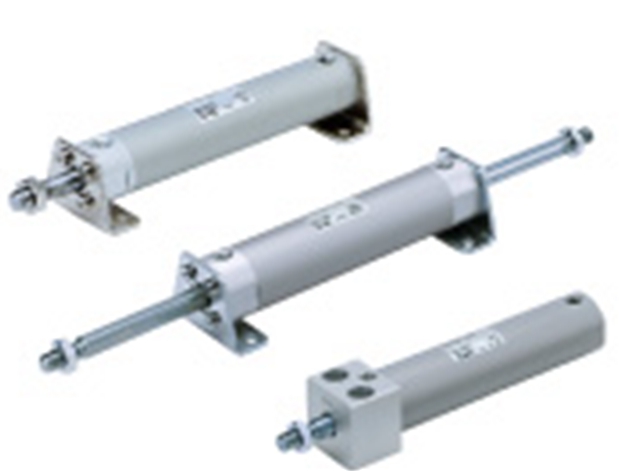

SMC 气缸 CG1/CDG1 cylinder
・杆前端内螺纹标准化。
・磁性开关操作性提高,位置调整更容易。
・基本型中追加了无耳轴安装螺孔的型号。
・追加了带杆端金属安装件、摆动金属安装件的型号(不必再另行配备)。
・带磁性开关(CDG1-Z系列:CDG1,CDG1W,CDG1K,CDG1KW,
CDG1R,CDG1KR,CDBG1)。
型号 | 系列 | 动作方式 | 缸筒内径(mm) |
---|---|---|---|
标准型 | CG1-Z | 单杆双作用 | 20,25,32,40,50,63,80,100 |
标准型 | CG1-Z | 单作用(伸出、缩回) | 20,25,32,40 |
标准型 | CG1W-Z | 双杆双作用 | 20,25,32,40,50,63,80,100 |
杆不回转型 | CG1K-Z | 单杆双作用 | 20,25,32,40,50,63 |
杆不回转型 | CG1KW-Z | 双杆双作用 | 20,25,32,40,50,63 |
直接安装型 | CG1R-Z | 单杆双作用 | 20,25,32,40,50,63 |
直接安装 杆不回转型 | CG1KR-Z | 单杆双作用 | 20,25,32,40,50,63 |
端锁气缸 | CBG1 | 单杆双作用 | 20,25,32,40,50,63,80,100 |
低摩擦型 | CG1□Q | 单杆双作用 | 20,25,32,40,50,63,80,100 |
型号确认
Standardization of internal threads at the front end of the rod.
Improved operability of magnetic switches and easier position
adjustment.
The basic model has added a model without mounting screw holes for
trunnions.
Added models with rod end metal mounting parts and swing metal
mounting parts (no need to be equipped separately).
With magnetic switch (CDG1-Z series: CDG1, CDG1W, CDG1K,
CDG1KW,
CDG1R , CDG1KR , CDBG1 )。
