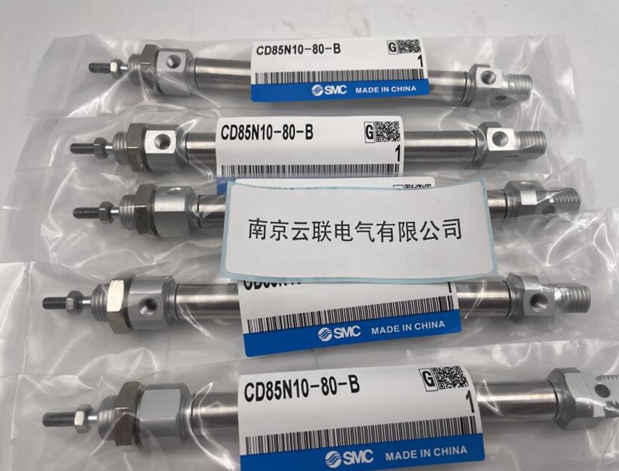

SMC cylinder 气缸CD85N10-50-B
品牌: SMC
型号: CD85N10-15-B
类型:无活塞式气缸滑台气缸
安装形式:固定式
安装方式:基本型
润滑方式:无给油气缸
加工定制:香
缸径: 20mm
行程: 260mm
活塞杆外径: 100mm
活塞杆螺纹: 1/4
最大耗气量qmax : 1000L/min
平均耗气量q: 1004U/min
环境温度: 78%C
汽缸数:4
理论作用力: 1004N
最大负荷: 1010N
最大力矩: 02360N-m
外形尺寸: 147mm
重量: 1.5kg
产地:日本
驱动方式:单作用气缸
传感器安装方式:直接安装
重量:净重0.78
气缸类型:小型
SMC cylinder CD85N10-50-B
Brand: SMC
Model: CD85N10-15-B
Type: Non piston cylinder slide table cylinder
Installation form: fixed type
Installation method: basic type
Lubrication method: no oil supply cylinder
Processing customization: Fragrance
Cylinder diameter: 20mm
Stroke: 260mm
Outer diameter of piston rod: 100mm
Piston rod thread: 1/4
Maximum gas consumption qmax: 1000L/min
Average gas consumption q: 1004U/min
Environmental temperature: 78% C
Number of cylinders: 4
Theoretical force: 1004N
Maximum load: 1010N
Maximum torque: 02360N-m
Boundary dimension: 147mm
