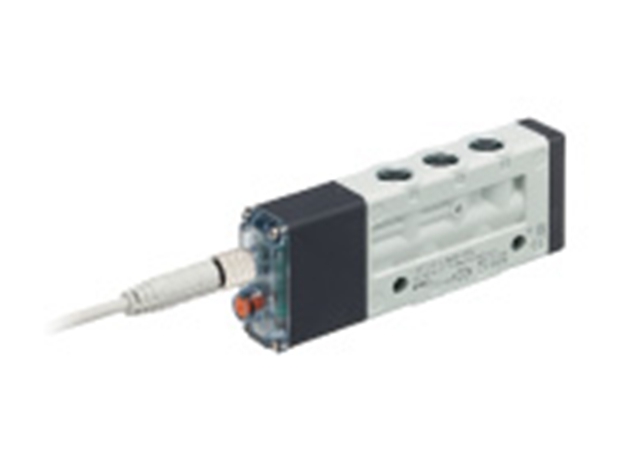

SMC 先导式电磁阀 DXT1215 Pilot operated solenoid valve

・高速响应：ON 2.5ms OFF 3ms

・大流量：330※L/min(ANR)

　※一次侧0.6MPa、压差0.1MPa时

・防护等级：IP67

・省电：1.5W(带节电回路)

・可选择3通或5通※

　※3通为订制规格（-X1）

・紧凑

　全长：91.5mm、宽：16mm、高：34mm

系列	流量特性 /4/2→5/3（A/B→E）/C［dm3/（s・bar）］	流量特性 4/2→5/3（A/B→E） b	消耗功率（W）
DXT1215	1.3	0.23	1.5（带节电回路）

SMC Pilot operated solenoid valve DXT1215

High speed response: ON 2 5ms OFF 3ms

L arge flow rate: 330※L/min (ANR)

When the primary side is 06MPa and the pressure difference is 0.1MPa

Protection level: IP67

Power saving: 1.5W (with power saving circuit)

. Can choose between 3-way or 5-way※

※3-way is a customized specification(- X1)

. Compact

Total length: 91.5mm, width: 16mm, height: 34mm
