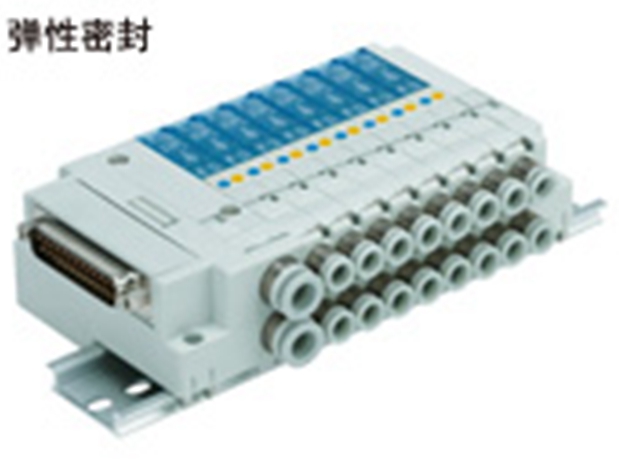

SMC 先导式 4通 电磁阀 SJ2000/3000
・无底座构造的扁平盒型。
・阀宽7.5mm(SJ2000)、10mm(SJ3000),节省空间。
・可混装SJ2000、SJ3000。
・采用插头插座式连接,便于阀的增减及更换。
・电磁头集中于一侧
・有4位双3通阀规格。
・集装型号:SS5J2, SS5J3
系列 | 流量特性 4/2→3/5(A/B→E) C[dm3/(s・bar)] | 流量特性 4/2→3/5(A/B→E) b | 流量特性 4/2→3/5(A/B→E) Cv | 气缸驱动 尺寸 | 消耗功率(W) |
---|---|---|---|---|---|
SJ2000 | 0.36 | 0.13 | 0.08 | φ20 | 0.55(标准) 0.23(带节电回路) |
SJ3000 | 0.56 | 0.11 | 0.12 | φ25 | 0.4(标准) 0.15(带节电回路) |
SMC Pilot operated 4-way solenoid valve SJ2000/3000
Flat box type without base construction.
The valve width is 7.5mm (SJ2000) and 10mm (SJ3000), saving space.
Can be mixed with SJ2000 and SJ3000.
Adopting plug and socket connection for easy valve addition, reduction,
and replacement.
. The magnetic head is concentrated on one side
Available in 4-position dual 3-way valve specifications.
Container model: SS5J2, SS5J3
