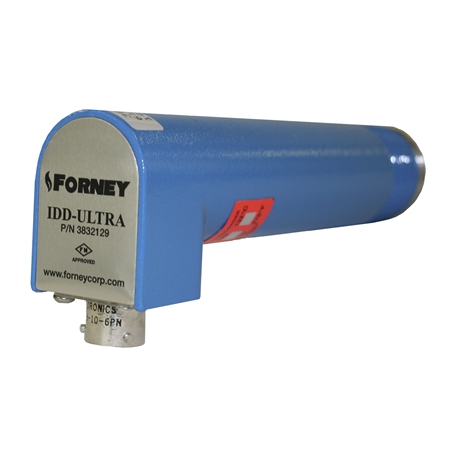

福尼Forney火焰探测器IDD-Ultra
福尼Forney火焰探测器IDD-Ultra是用于高温应用UV探测器。
规格:
安装:1英寸NPT观察管配件
材料:铸钢外壳,盆栽电子
电气:由放大器,50 VDC和15 VDC提供
电气连接:MS卡口连接器随附电缆,需要1/2英寸柔性导管
温度等级:32°F至250°F(0°C至121°C)
如果预计检测器头的温度为冰点,Forney建议进行伴热
检测器观察管。
有关高温应用,请咨询Forney。
湿度:0-95%相对湿度,无凝结
运送重量:21盎司(0.6公斤)
批准:工厂互助(FM)
传感器:碳化硅(SiC)
Forney Flame Detector IDD Ultra
Fournier Forney Flame Detector IDD Ultra is a UV detector for high temperature applications.
Specifications:
Installation: 1 inch NPT observation pipe fitting
Material: cast steel shell, potted electronics
Electrical: supplied by amplifier, 50 VDC and 15 VDC
Electrical connection: cable attached to MS bayonet connector, 1/2 inch flexible conduit required
Temperature class: 32 ° F to 250 ° F (0 ° C to 121 ° C)
If the detector head temperature is expected to be freezing point, Forney recommends heat tracing
Detector sight tube.
Consult Forney for high temperature applications.
Humidity: 0-95% relative humidity, no condensation
Shipping weight: 21 ounces (0.6 kg)
sale njxj888@163.com
Approved by: Factory Mutual (FM)
Sensor: silicon carbide (SiC)
