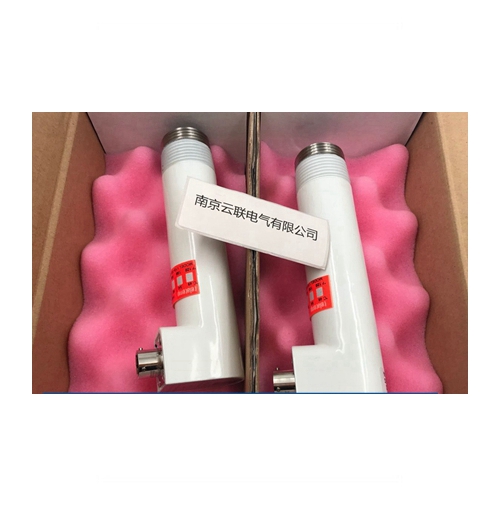

福尼Forney火检探头 IDD-II

福尼Forney火检探头 IDD-II

福尼Forney火检探头 IDD-IIForney的IDD-II系列火焰探测器通过多种火焰探测和鉴别功能满足公用事业的操作灵活性要求。产品和配件:IDD-II红外探测器过滤(#6石油和煤)部分#38321-21IDD-IIU红外探测器未过滤(#2油,#6石油和煤)部分#38321-22IDD-IIL,红外探测器褐煤燃料部件#38321-23冷却室(可选)部件号381071-01产品规格:安装:1“

详细介绍

福尼Forney火检探头 IDD-II
Forney的IDD-II系列火焰探测器通过多种火焰探测和鉴别功能满足公用事业的操作灵活性要求。
产品和配件:
IDD-II红外探测器过滤(#6石油和煤)部分#38321-21
IDD-IIU红外探测器未过滤(#2油,#6石油和煤)部分#38321-22
IDD-IIL,红外探测器褐煤燃料部件#38321-23
冷却室(可选)部件号381071-01
产品规格:
安装:1“NPT观察管接头
材料:铸钢外壳,盆栽电子
电气:由放大器提供,50 VDC和12 VDC
电气连接:MS Bayonet连接器随附电缆,需要1/2“柔性导管
冷却空气要求:前部安装应用 - 最小冷却空气流量为10 scfm(17 m3 / hr)
最高温度120°F(48°C)
光纤应用 - 最小冷却空气流量为15 scfm(25 m3 / hr)
最高温度120°F(48°C)
温度额定值:32°F至140°F(0°C至60°C)
带冷却室:适用于140°F至200°F(60°C至93°C)的环境温度
必须使用分庭。
湿度:0-95%相对湿度,无冷凝
运输重量:21盎司
批准:Factory Mutual(FM)
传感器/波长:IDD-IIU 400  -  3300nm
IDD-II 700  -  3300nm
IDD-IIL 700  -  3300nm
(IDD-IIL探测器在较低闪烁时具有更好的火焰闪烁频率响应
频率范围> 5到18 Hz)
探测器头
IDD-II规格表
#404005-05

UV-4探测器规格表
#404005-17

放大器
IDD 9000放大器规格表
#404005-21
RM-IDD和PM-IDD IIIA放大器规格表
#404005-16
DR6101E放大器规格表
#404005-07

冷却室
IDD冷却室规格表
#404005-18
UV-4冷却室规格表
#404005-20

Forney Flame Detector Probe IDD-II contact us sale njxj888@163.com

Forney's IDD-II series flame detectors meet the operational flexibility requirements of utilities through a variety of flame detection and identification functions.

Products and accessories:

IDD-II infrared detector filtration (# 6 oil and coal) part # 38321-21

IDD-IIU infrared detector unfiltered (# 2 oil, # 6 oil and coal) part # 38321-22

IDD-IIL, infrared detector lignite fuel part # 38321-23

Cooling chamber (optional) part number 381071-01

Product specification:

Installation: 1 "NPT observation pipe joint

Material: cast steel shell, potted electronics

Electrical: supplied by amplifier, 50 VDC and 12 VDC

Electrical connection: cable supplied with MS Bayonet connector, requires 1/2 "flexible conduit

Cooling air requirements: Front mounted applications - minimum cooling air flow of 10 scfm (17 m3/hr)

Maximum temperature 120 ° F (48 ° C)

Fiber Optic Applications - 15 scfm (25 m3/hr) minimum cooling air flow

Maximum temperature 120 ° F (48 ° C)

Temperature rating: 32 ° F to 140 ° F (0 ° C to 60 ° C)

With cooling chamber: suitable for 140 ° F to 200 ° F (60 ° C to 93 ° C) ambient temperature

Chambers must be used.

Humidity: 0-95% relative humidity, non condensing

Shipping weight: 21 ounces

Approved by: Factory Mutual (FM)

Sensor/wavelength: IDD-IIU 400 - 3300nm

IDD-II 700 - 3300nm

IDD-IIL 700 - 3300nm

(IDD-IIL detector has better flame flicker frequency response at low flicker

Frequency range>5 to 18 Hz)

Detector head

IDD-II Specification Sheet

#404005-05

Specification table of UV-4 detector

#404005-17

amplifier

IDD 9000 Amplifier Specification Sheet

#404005-21

RM-IDD and PM-IDD IIIA Amplifier Specification Sheet

#404005-16

DR6101E amplifier specification table

#404005-07

Cooling chamber

IDD Cooling Chamber Specification Sheet

#404005-18

UV-4 Cooling Chamber Specification Sheet

#404005-20
