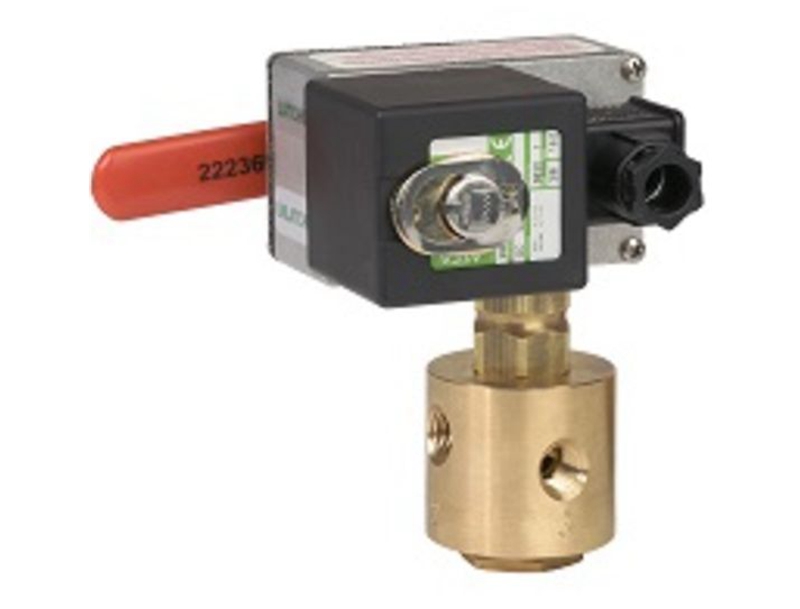

ASCO电磁阀 8307系列 先导阀

ASCO电磁阀 8307系列  先导阀

ASCO 307-S系列,也称为8307 ,是一系列电磁先导阀，专为恶劣环境中的

重型工业应用而设计。它们的高流量、坚固的不锈钢或黄铜结构以及较长的

使用寿命特别适合用于钻机和炼油厂。阀门是ATEX 94/9/EC指令批准的。

规格

阀门驱动手动复位，电磁阀，电磁阀空气先导

阀体材料黄铜、不锈钢

介质空气、惰性气体、轻油、水

管道/端口尺寸%4“;"; /2;”; 3/8英寸

端口类型NPTF

功能3路-3/2通用

流量.43至.86 Kv

电压24 DC、48DC、 24 AC、115AC、230 AC |50、60

最大压差/最大工作压力真空至10.3巴，真空至150 PSIG

操作环境危险、腐蚀性、室外

标准/法规P65、ATEX 0-20区、ATEX 1-21区、CUTR/EAC、IEC 60529 (入

口保护)、EC Ex0-20区，IECEx 1-21区，IP66、IP67、 SILyunlian inquiry and quotation njxj888@163.com

The ASCO Series 307-S, also known as 8307, is a line of solenoid pilot valves designed for heavy-duty industrial applications in hostile environments. Their high flow capacity, rugged stainless steel or brass constructions, and long service life are especially well suited for use in drilling rigs and refineries. The valves are ATEX 94/9/EC Directive approved.

Specifications

Valve ActuationManual Reset, Solenoid, Solenoid - Air Pilot

Body MaterialBrass, Stainless Steel

MediaAir, Inert Gas, Light Oil, Water

Pipe / Port Size¼ "; "; ½ "; "; 3/8 "

Port TypeNPTF

Function3 way - 3/2 Universal

FlowFrom .43 to .86 Kv

Voltage24 DC, 48 DC, 24 AC, 115 AC, 230 AC | 50, 60

Max Differential / Max Operating PressureVacuum to 10.3 Bar, Vacuum to 150 PSIG

Operating EnvironmentHazardous, Corrosive, Outdoor

Standards / RegulationsIP65, ATEX Zone 0-20, ATEX Zone 1-21, CUTR / EAC, IEC 60529 (Ingress protection), EC Ex Zone 0-20, IEC Ex Zone 1-21, IP66, IP67, SIL
