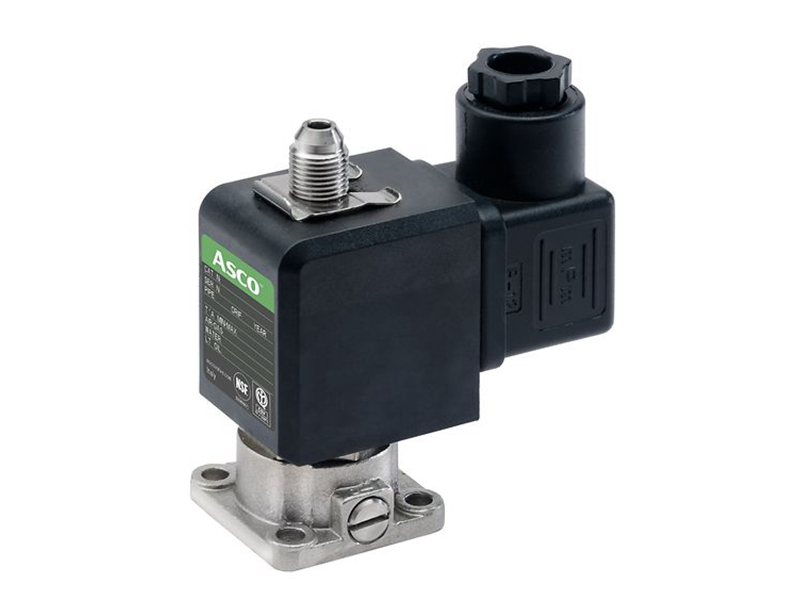

ASCO 三通电磁阀SC8356B048NVDC12/DC

ASCO 三通电磁阀SC8356B048NVDC12/DC

规格

气门执行电磁阀直接作用

阀体材料黄铜、不锈钢

介质空气、惰性气体、氧气、水、轻油、蒸汽、热水

管道/端口尺寸1/8" ; 1/4” ;衬垫安装

端口类型G ISO228/1-G BSPP , NPTF , G螺纹，衬垫安装

功能3路3/2常闭，3路-2/2常开, 3路-3/2通用

流量0.05-0.4 Kv ( 0.06-0.46 Cv )

电压100至240 AC/DC电压范围, 12DC , 24 DC，48DC|50，50/60，60

最大压差/最大工作压力10.3-34.5巴，150-500磅/平方英寸

ASCO 356系列，也称为8356 ,三通紧凑型电磁阀具有重量轻、结构紧凑的

设计,用于控制单作用执行机构或填充或排放循环。黄铜或不锈钢结构具有

广泛的弹性体和适用于特殊服务应用的紧密关闭提升阀。

Specifications

Valve ActuationSolenoid - Direct Acting

Body MaterialBrass, Stainless Steel

MediaAir, Inert Gas, Oxygen, Water, Light Oil, Steam, Hot Water

Pipe / Port Size1/8 "; 1/4 "; Pad-Mount

Port TypeG ISO228/1-G BSPP, NPTF, G-Thread, Pad-Mount

Function3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open, 3 way - 3/2 Universal

FlowFrom 0.05 - 0.4 Kv (0.06 - 0.46 Cv)

Voltage100 to 240 AC/DC Voltage Ranging, 12 DC, 24 DC, 48 DC | 50, 50/60, 60

Max Differential / Max Operating Pressure10.3-34.5 Bar, 150-500 PSIG yunlian inquiry and quotation njxj888@163.com

The ASCO Series 356, also known as 8356, 3-way compact solenoid valves have a lightweight, compact design for the control of single-acting actuators or filling or draining cycles. The brass or stainless steel constructions feature a wide range of elastomers and tight shutoff poppets for specialty service applications.
