详细介绍
ACL 电磁阀2位2通 直动式161 电磁阀2通常闭 与干式电枢直接作用。 没有金属部件与介质接触。 构造 本体缩醛共聚物 电枢管AISI 303 柱塞和芯AISI 430FR 弹簧AISI 302 密封材料SILICONE-FPM 功能 最大允许压力PS 2bar 最大流体粘度25cSt（mm2/s） 环境温度：根据线圈，从-10°C到+80°C 垂直线圈在上方的安装位置 DESCRIPTION Solenoid valve 2 way normally closed direct acting with dry armature. No metal parts in contact with the media. CONSTRUCTION Body Acetal copolymer Armature tube AISI 303 Plunger and core AISI 430FR Springs AISI 302 Seal material SILICONE - FPM FEATURES Maximum allowable pressure PS 2bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Mounting position with vertical coil above 2/2 Direct Acting Dry | |||||||||||||

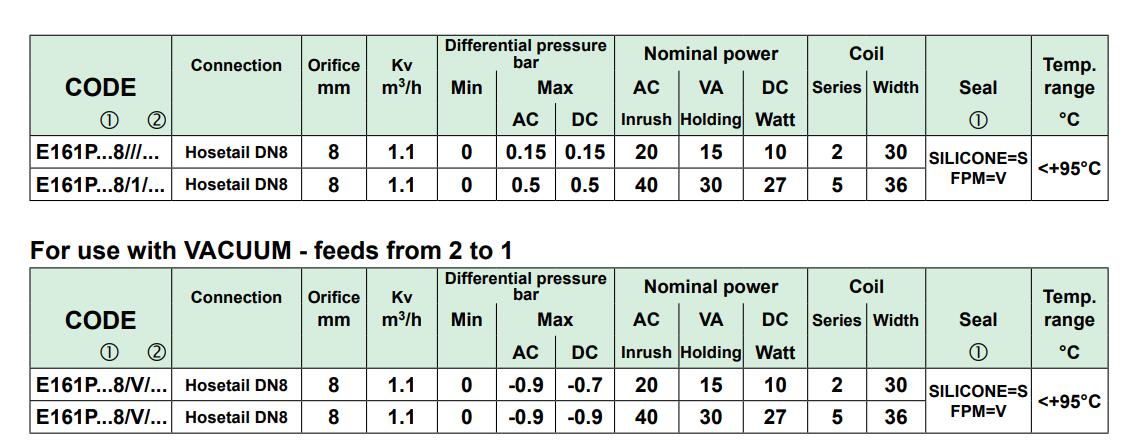

| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | |||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | ||||||
| AC | DC | INRUSH | HOLDING | W | °C | ||||||||
 161 | Portagomma | 8 8 8 8 | 1.1 1.1 1.1 1.1 | 0 0 0 0 | 0.15 -0.9 0.5 -0.9 | 0.15 -0.7 0.5 -0.9 | 20 20 40 40 | 15 15 30 30 | 10 10 27 27 | 30 30 36 36 | 2 2 5 5 | SILICONE | <+95 |
