WIKA PG23HP-P 波登管压力表，不锈钢材质

WIKA PG23HP-P
波登管压力表，不锈钢材质
高达600 MPa的高压应用，重负载型

应用

高压应用下的液体介质（如水、液压油）
测试台（如自增压、爆裂压力）
水射流切割
高压清洗
高压生成
功能特性

安全压力表，带固体挡板，该设计可满足DIN 16001高压标准中提及的要求及测试条件
即使在动态压力条件下，也可满足高负载的周期稳定性
准确度高达1%，可选0.6%
量程：0...200 MPa至0...600 MPa

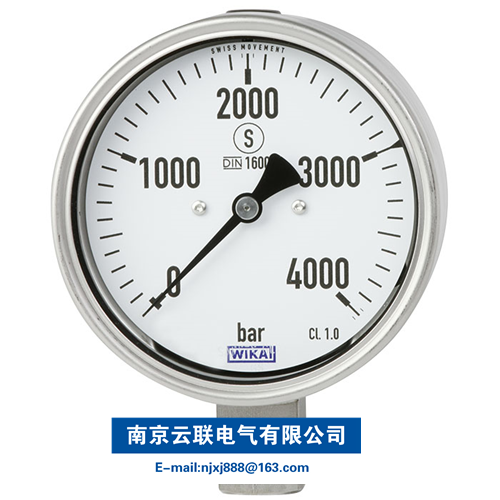

WIKA  PG23HP-P
Bourdon tube pressure gauge, stainless steel
For highest pressure applications to 6,000 bar, heavy-duty version

Applications

For liquid media in high-pressure applications (e.g. water, hydraulic oil)
Test benches (e.g. for autofrettage, burst pressure)
Water jet cutting
High-pressure cleaning
High-pressure generation
Special features

Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard
High load cycle stability, even with dynamic pressure profiles
High indication accuracy of 1 %, optionally 0.6 %
Scale ranges from 0 ... 2,000 bar to 0 … 6,000 bar
