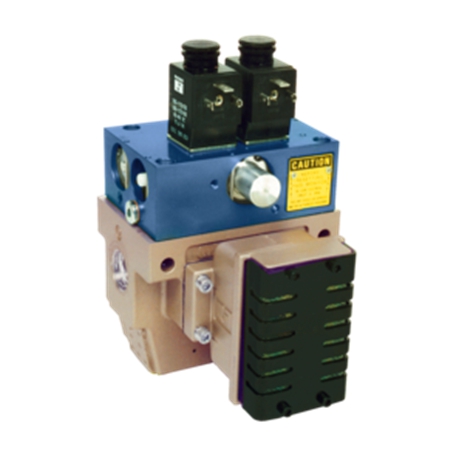

ROSS控制双联阀D3573D4216Z

ROSS控制双联阀D3573D4216Z
带气动L-G监控器的双阀，端口3/8至3/4

1. 内部监控–无需额外的监控电路
2. 检测到故障时自动锁定/禁止
3. 故障检测时默认为断电位置
4. 专用复位功能
5. 移除电动或气动能源后，不会发生意外的自动重置
6. 内置无堵塞消音器

端口尺寸（英寸）1/2“
端口螺纹BSPP
电压120 VAC
（进出）3
重置类型空中信号
状态指示灯连接气动端口
端口尺寸（输出）1/2“
消音器内置端口尺寸（排气）
（排气）8
南直列安装类型
京进口侧左侧
云状态指示灯端口可用
联监视器类型气动
技覆写无覆写
术输入到主电磁双
电磁连接DIN
重量：8.3磅（3.76千克）

库存 常用型号 查询

ROSS control duplex valve D3573D4216Z

Dual valve with pneumatic L-G monitor, ports 3/8 to 3/4

Internal monitoring – no additional monitoring circuit required

Automatic locking/disabling when fault is detected

Fault detection defaults to the power-off position

Special reset function

After removing electric or pneumatic energy, there will be no accidental automatic reset

Built-in non-blocking silencer

Port size (inch) 1/2“

Port thread BSPP

Voltage 120 VAC

(In and out) 3

Reset type air signal

Status indicator connected to pneumatic port

Port size (output) 1/2“

Muffler built-in port size (exhaust)

(Exhaust) 8

South in-line installation type

Left side of Beijing entrance

Cloud status indicator port available

Joint monitor type pneumatic

Technical override No override

Technical input to main electromagnetic double

Electromagnetic connection DIN

Weight: 8.3 lbs (3.76 kg)
