GF 变送器 transmitter 3-9900-1

GF 变送器 transmitter 3-9900-1仪表

Signet 9900变送器

特点

Sigpet 900变送器提供单通道输入多参数，包括流量，pHORP, 电导率电阻率，压力，温度，液

位，盐度和其它输出4-20mA信号的传感器。大尺寸(3.90”x3.90”)自感应背光显示等特点使其具有

一目了然”视觉效果，是传统变送器可视距离的45倍。高亮度的显示和大号字体降低了 误读曲解显示

值的风险。分行显示测量单位主测量值和第二测量值以及“拨码盘”式数码棒状图。

90提供盘面安装和现场安装两个版本。这两个版本供电皆为12 - 32 VDCQ4VDC额定值。90可以给部分兼容传感器供电。灵活的，可插拔模块设计更易于满足不断变化的用户需求。可选模块包括继电器横块， 直接电导率电阻率模块，HCOMD和PC coM设定工具。变送器可以使用默认设定快速简单地完成组态或自定义标签,可调的zui小或ul大拨码盘设定，测量单位和小数点位数选择等。

显示范围

pH 0.00- 15.00 pH

pH温度-99。C-350° C-146 。F-662。F

ORP -1999- 1999.9 mV

流量0.0000 99999单位每秒，分钟，小时或天

累积量0.00- 9999999单位 云联电气  技术咨询 报价  njxj888@163.com

电导0.0000- 9999 μs, mS, PPM和PPB (TDS), k2, MO

电导温度-99。C-350° C - 146。F- 662F

温度-99°C-350° C -146。F-662 °F

压力-40- 1000 psi

液位-9999 - 9999 m, cm, ft, in, %

体积量0 - 9999 cm3, m3, in3, ft3, gal, L, 1b, kg. %

盐度0- 100 PPT

产品编号订货代码描述

9900 云联电气 技术支持

主单元. 单通道，多参数，4-20mA. 集电极开路输出，直流电源

3. 9900-1P 159 001 695 9900盘面安装变送器

3- 9900-1 159 001 696 9900现场安装变送器

可选附件模块

39900.900 159 001 698继电器模块- 2路DCR (干接点继电器)

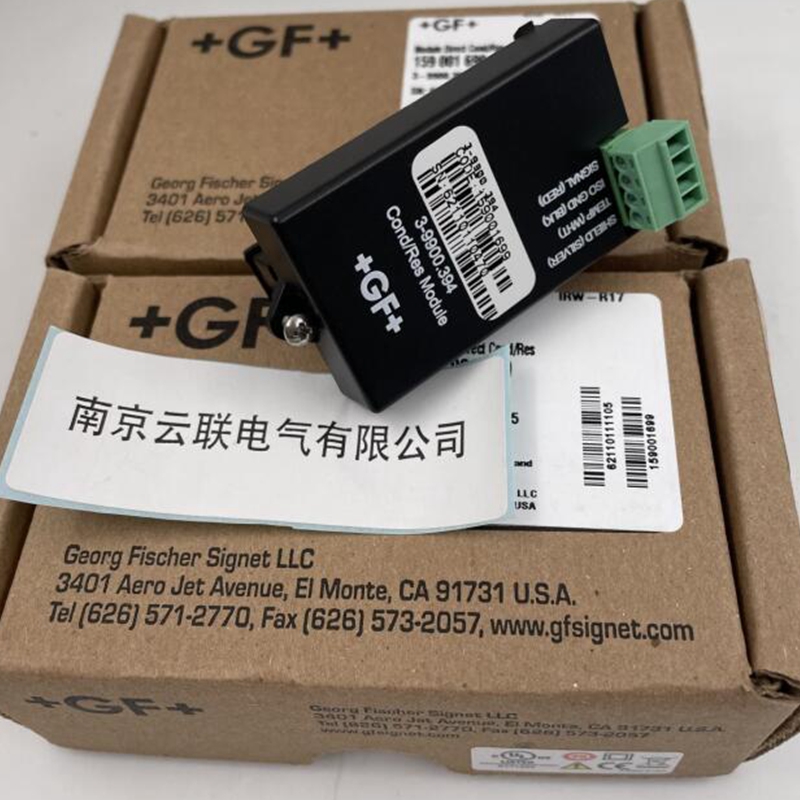

3- 900904 159 001 699直接电导/电阻率模块

3-9900.395 159 001 697 H COMM模块

GF transmitter 3-9900-1 instrument

Signet 9900 transmitter

characteristic

The Sigpet 900 transmitter provides single channel input with multiple parameters, including flow rate, pHORP, conductivity and resistivity, pressure, temperature, and liquid

Sensors that output 4-20mA signals for temperature, salinity, and other parameters. The large size (3.90 "x3.90") self sensing backlight display and other characteristics make it possess

The visual effect is clear at a glance, which is 45 times the visible distance of traditional transmitters. High brightness display and large font size reduce misreading and misinterpretation display

The risk of value. Branches display the primary and secondary measurement values of the measurement unit, as well as a "dial dial" digital bar chart.

90 offers two versions: disk installation and on-site installation. Both versions are powered with 12-32 VDCQ4VDC ratings. 90 can power some compatible sensors. Flexible and pluggable module design makes it easier to meet constantly changing user needs. Optional modules include relay cross blocks, direct conductivity resistivity modules, HCOMD, and PC CoM setting tools. The transmitter can use default settings to quickly and easily complete configuration or customize labels, adjustable Zui small or ul large dial settings, measurement units and decimal places selection, etc.

Display Range

pH 0.00- 15.00 pH

PH temperature -99. C-350° C-146 。 F-662。 F

ORP -1999- 1999.9 mV

Traffic 0.0000 99999 units per second, minutes, hours or days

Accumulated quantity 0.00-9999999 units

Conductivity 0.0000-9999 μ s. MS, PPM, and PPB (TDS), k2, MO

Conductivity temperature -99. C-350° C - 146。 F- 662F

Temperature -99 ° C-350 ° C-146. F-662 °F

Pressure -40-1000 psi

Liquid level -9999-9999 m, cm, ft, in,%

Volume 0-9999 cm3, m3, in3, ft3, gal, L, 1b, kg.%

Salinity 0-100 PPT

Product Number Ordering Code Description

9900 Yunlian Electrical Technical Support

Main unit Single channel, multi parameter, 4-20mA Open collector output, DC power supply

3. 9900-1P 159 001 695 9900 Disk Mount Transmitter

3-9900-1 159 001 696 9900 Field Mount Transmitter

Optional accessory module

39900.900 159 001 698 Relay module -2-way DCR (dry contact relay)

3-900904 159 001 699 Direct Conductivity/Resistivity Module

3-9900.395 159 001 697 H COMM module
