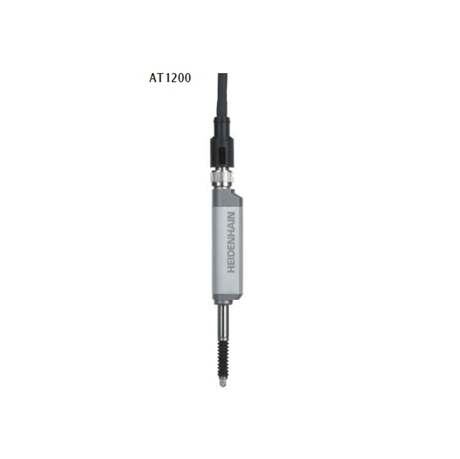

海德汉 heidenhain长度计 AT 1218 AT 3018 AT 1217 AT 3017
详细介绍
海德汉 heidenhain长度计 AT 1218 AT 3018 AT 1217 AT 3017
带有EnDat接口的绝对长度计
•在线诊断
•防护等级高达IP67
•带有CRC的串行数据传输
Mechanical data | AT 1218 | AT 3018 | AT 1217 | AT 3017 |
Plunger actuation Position of plunger at rest | By measured object Extended | Pneumatic Retracted | ||
Measuring standard | DIADUR grating on glass; grating period 188.4 µm | |||
System accuracy | ±1 µm | ±2 µm | ±1 µm | ±2 µm |
Position error per signal period | † ± 0.7 µm | |||
Measuring range | 12 mm | 30 mm | 12 mm | 30 mm |
Working pressure | – | 0.7 bar to 1.8 bars | 1.1 bars to 1.8 bars | |
Mech. permissible traversing speed | † 80 m/min | † 120 m/min | † 80 m/min | † 120 m/min |
Radial force | † 0.5 N (mechanically permissible) | |||
Fastening | Clamping shank ¬ 8h6 | |||
Operating orientation | Any | |||
Vibration 55 Hz to 2000 Hz Shock 11 ms | † 100 m/s2 (EN 60 068-2-6) † 500 m/s2 (EN 60 068-2-27) | |||
Operating temperature | 10 °C to 40 °C; reference temperature 20 °C WIN UNION inquiry njxj888@163.com | |||
Protection EN 60 529 | IP67 | IP641) IP67 upon request | IP641) | |
Mass without cable | 80 g | 100 g | 80 g | 100 g |
