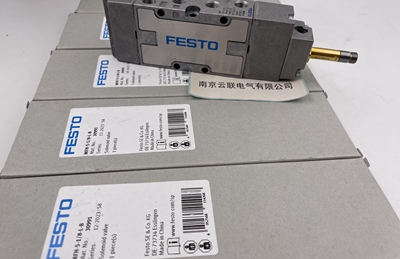

FESTO 电磁阀MFH-5-1/8-L-B
详细介绍
FESTO 电磁阀MFH-5-1/8-L-B
阀功能
两位五通，单稳态
标准额定流量（根据 DIN 1343 标准化）
1000 l/min
气接口，气口 1
G1/8
驱动方式
电控
阀功能
两位五通，单稳态
驱动方式
电控
宽度
26 mm
标准额定流量（根据 DIN 1343 标准化）
1000 l/min
工作气口
G1/8
工作压力
0.3 Mpa ... 1 Mpa
工作压力
3 bar ... 10 bar
结构特点
活塞闸阀
复位类型
气动弹簧
公称通径
8 mm
密封原理
软密封
安装位置
可选
FESTO solenoid valve MFH-5-1/8-L-B
Valve function
Two position five way, monostable state
Standard rated flow (standardized according to DIN 1343)
1000 l/min
Air interface, air port 1
G1/8
Driving method
Electric control
Valve function
Two position five way, monostable state
Driving method
Electric control
width
26 mm
Standard rated flow (standardized according to DIN 1343)
1000 l/min
Working air port
G1/8
working pressure
0.3 Mpa 1 Mpa
working pressure
3 bar 10 bar
Structural characteristics
Piston gate valve
Reset type
Pneumatic spring
Nominal diameter
8 mm
Sealing principle
Soft sealing
Installation location
Optional
