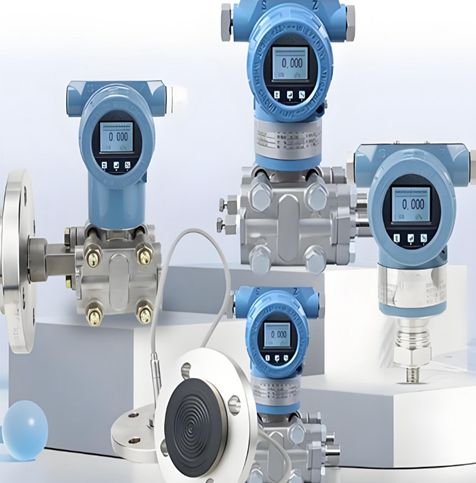

Pressure Transmitter Common Fault Troubleshooting Guide - From Basics to Practice

As a core detection device in industrial automation control systems, pressure transmitters are widely used in petroleum, chemical, hydropower, metallurgy and many other fields. Their operational stability is directly related to the precise control, safety and efficiency of production processes. Once a fault occurs, it may lead to data acquisition distortion, process parameter deviation, equipment shutdown and other problems, resulting in economic losses. Therefore, mastering scientific fault troubleshooting methods to quickly locate and solve problems is an essential skill for industrial operation and maintenance personnel. Based on basic principles and practical experience, this article sorts out common faults of pressure transmitters and corresponding troubleshooting strategies.

Power supply and wiring faults are the most basic and common problems of pressure transmitters, accounting for more than 30% of total faults. The core manifestations of such faults include no output from the transmitter, unstable output signal or abnormal values. During troubleshooting, first, confirm whether the power supply is normal. Different types of transmitters have different power supply requirements. Conventional intelligent transmitters mostly adopt 24V DC power supply. Use a multimeter to measure the power supply voltage to ensure it is within the range of 22V-26V. If the voltage is too low, check whether the power supply module, line loss and fuse are damaged, replace faulty components in a timely manner and troubleshoot poor line contact issues.

In the wiring link, focus on checking whether the connection between the signal line and power line is firm, and whether there is looseness, oxidation, short circuit or reverse connection. For two-wire transmitters, the signal line and power line are shared; confirm that the positive and negative poles are correctly connected to avoid burning the internal components of the transmitter due to reverse polarity. For three-wire and four-wire transmitters, distinguish between power lines and signal lines, and check for line damage, insulation aging and other conditions. Especially in high-temperature, humid and corrosive environments, regularly inspect the protective measures of wiring terminals, and replace them with waterproof and anti-corrosion terminals when necessary to reduce the impact of environmental factors on wiring. If wiring errors or poor contact are found during troubleshooting, cut off the power supply, rewire and fasten the terminals, then power on to test whether the signal returns to normal.

Zero and range drift are common faults during the operation of pressure transmitters, mainly manifested as excessive deviation between the measured value and the actual pressure, no zero output after power-on or abnormal range. Such faults are mostly caused by environmental temperature changes, long-term wear and tear, medium influence and other factors. During troubleshooting, first isolate the transmitter from the process pipeline to ensure no pressure in the measuring chamber, then perform zero adjustment. Intelligent transmitters can be connected to the device through a hand-held terminal to read the current zero value; if it deviates from the standard zero, perform zero calibration via the hand-held terminal. For analog transmitters, manual calibration is required through the on-site zero adjustment knob, and observe whether the output signal returns to the normal range after calibration.

Range drift troubleshooting should be combined with the actual process pressure. Connect the transmitter to a standard pressure source, gradually apply different levels of pressure, and observe whether the output signal corresponds to the standard pressure. If the range deviation is too large, adjust the range parameters through the hand-held terminal or on-site knob, and calibrate repeatedly until the measurement accuracy meets the requirements. It should be noted that the ambient temperature must be kept stable during calibration to avoid the impact of temperature fluctuations on calibration accuracy. At the same time, record the calibration data for future maintenance reference. If drift problems still exist after multiple calibrations, consider the aging of internal components of the transmitter and replace the sensor module or the entire unit in a timely manner.

Sensor component faults are mostly related to medium characteristics and operating environment, with core manifestations of inaccurate measurement, frequent fluctuation of output signal or no response. The core of the sensor component of a pressure transmitter is the diaphragm. If the measured medium contains impurities, oil stains, viscous substances, etc., it is easy to cause diaphragm blockage and contamination, affecting pressure transmission. If the medium is corrosive, it may cause diaphragm damage and leakage, directly leading to equipment failure. During troubleshooting, first close the valves before and after the transmitter, relieve pressure, then disassemble the equipment and observe whether there are oil stains, impurities, scratches or damage on the diaphragm surface.

For diaphragm blockage or contamination, use special cleaning agents such as absolute ethanol and acetone to wipe gently to remove impurities and oil stains, and reinstall after completely drying. If the diaphragm is damaged or leaking, replace it with a diaphragm of the same model in a timely manner. Pay attention to the installation of seals during replacement to avoid leakage. In addition, check the connection between the sensor component and the process pipeline to confirm that the gasket is intact and the connection is firm, preventing medium leakage from affecting measurement accuracy. After installation, introduce pressure medium for testing to ensure stable and accurate output signal.

In addition to the above common faults, environmental interference may also cause abnormal operation of pressure transmitters, such as electromagnetic interference, excessive high or low temperature, excessive vibration, etc. During troubleshooting, observe whether the installation position of the transmitter is close to strong electromagnetic equipment such as frequency converters and motors. If there is electromagnetic interference, add shielding measures, replace the shielded signal line, and keep a safe distance between the transmitter and the interference source. If the ambient temperature exceeds the working range of the equipment, take cooling or heat preservation measures to avoid accelerated aging of components. If the vibration is excessive, reinforce the mounting bracket to reduce the impact of vibration on the equipment. Comprehensive inspection of environmental factors can effectively solve faults caused by external conditions.

In conclusion, pressure transmitter fault troubleshooting should follow the principle of "from basic to complex, from external to internal", gradually check from power supply, wiring, zero and range, sensor components to environmental factors, and accurately locate the fault cause and take corresponding solutions in combination with equipment type and process characteristics. At the same time, strengthen regular inspection, calibration and maintenance of equipment in daily operation and maintenance to reduce the fault rate and ensure the stable operation of industrial production.
