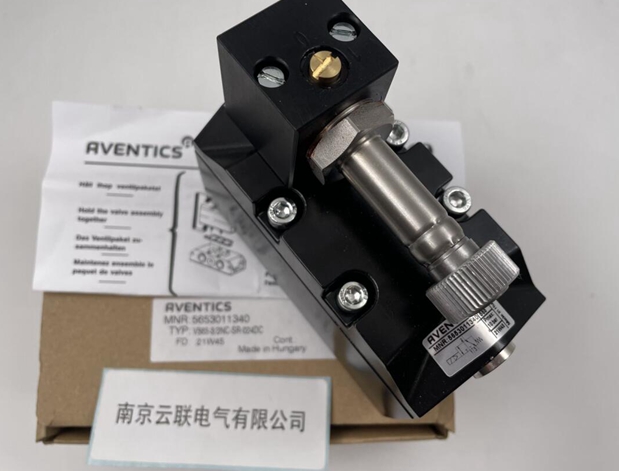

安沃驰AVENTICS气缸气动阀门Pneumatic Valve 5653011340

安沃驰AVENTICS气缸气动阀门Pneumatic Valve 5653011340

工作压力范围 -0.9 ... 10 bar

控制压力 最小/最大 2.5 ... 10 bar

最低 / 最高环境温度 0 ... 50 °C

介质温度范围 0 ... 50 °C

介质 压缩空气

颗粒大小 max. 5 µm

压缩空气中的含油量 0 ... 5 mg/m³

额定流量Qn 850 l/min

先导排气 带先导集中排气

防护等级 带接口 IP65

保护电路 Z-二极管

反向极性保护 反极性保护

发光二极管状态显示 黄色

暂载率 100 %

固定螺栓 十字型槽 DIN EN ISO 4757-Z1

拧紧螺栓的最小扭力 1.3 Nm

重量 0.082 kg

Rexroth Rexroth Pneumatic Valve 5653011340

Working pressure range -0.9... 10 bar

Control pressure min/max 2.5... 10 bar

Min/Max ambient temperature 0 50 °C

Medium temperature range 0 50 °C

Medium compressed air

Particle size max. 5 µ m

The oil content in compressed air is 0 5 mg/m ³

Rated flow Qn 850 l/min

Pilot exhaust with pilot centralized exhaust

Protection level with interface IP65

Protection circuit Z-diode

Reverse polarity protection

LED status display in yellow

Temporary load rate 100%

Fixed bolt cross groove DIN EN ISO 4757-Z1

Rexroth Rexroth Pneumatic Valve 5653011340

Working pressure range -0.9... 10 bar

Control pressure min/max 2.5... 10 bar

Min/Max ambient temperature 0 50 °C

Medium temperature range 0 50 °C

Medium compressed air

Particle size max. 5 µ m

The oil content in compressed air is 0 5 mg/m ³

Rated flow Qn 850 l/min

Pilot exhaust with pilot centralized exhaust

Protection level with interface IP65

Protection circuit Z-diode

Reverse polarity protection

LED status display in yellow

Temporary load rate 100%

Fixed bolt cross groove DIN EN ISO 4757-Z1
