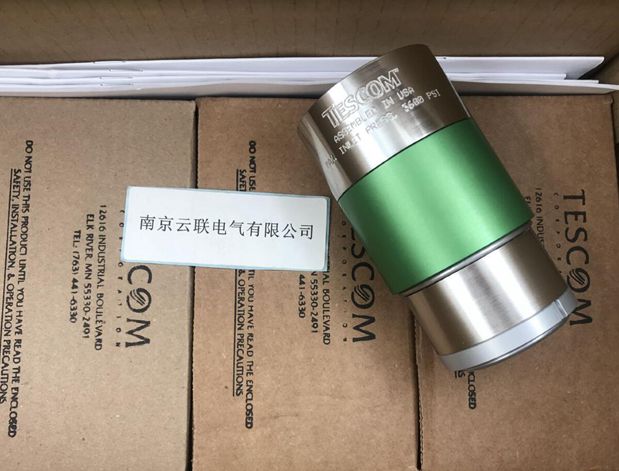

TESCOM 调节阀44-1500系列 带隔膜
TESCOM 调节阀44-1500系列 带隔膜
详细介绍
TESCOM 调节阀44-1500系列 带隔膜
高精度 低压 南京云联电气有限公司 原装正品 优势供应
产品特点
高精度 低压调节阀44-1500系列 带隔膜 600 psig / 41 bar
TESCOM™ 44-1500 Series high flow/low pressure regulator controls outlet pressures up to 600 psig / 41 bar. Large area piston provides accurate pressure control ａnd cycle life superior to diaphragm sensed regulators when applied to heavy duty cycling. Features a segregated / captured vent for hydraulic or pneumatic media ａnd is available in two outlet spring ranges. Optional dome or air loaded versions for remote operation or for use with the TESCOM ER3000 Electropneumatic Controller for automation. Ideal for use in hydraulic testing ａnd pneumatic testing.
压力范围
最大进气压力
6000 psig / 414 bar
出口压力
Spring Load:0-200, 0-400 psig / 0-14, 0-28 bar
Air/Dome Load:0-600 psig / 0-41 bar
材质
Body: 316 Stainless Steel or Brass
40 Micron Filter:Bronze
Main Valve Seat:Vespel®SP21
Vent Valve Seat:Vespel®SP21
O-Ring: Buna-N, Viton®, Kalrez®, Ethylene Propylene
Back-up Rings:Teflon®
Remaining Parts:300 Series Stainless Steel, Brass, Monel
