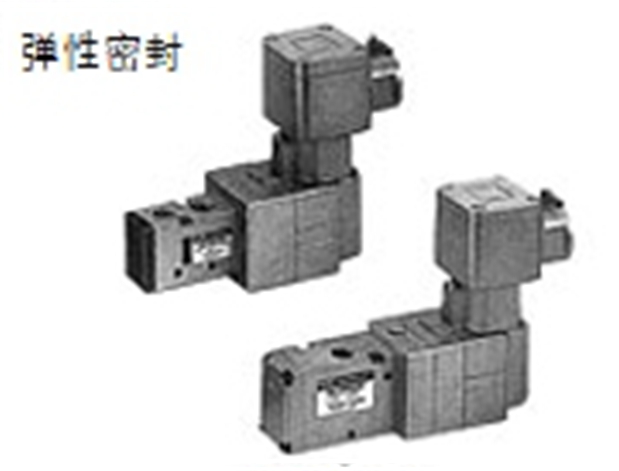

SMC 防爆型电磁阀 3、5通 50-VFE/50-VPE explosion-proof 3/5-way solenoid valve
SMC 防爆型电磁阀 3、5通 50-VFE/50-VPE explosion-proof 3/5-way solenoid valve
详细介绍
SMC 防爆型电磁阀 3、5通 50-VFE/50-VPE explosion-proof 3/5-way solenoid valve
・Exd Ⅱ BT4 (TIIS认证品)。
・防水性：相当于IP※6
・无需先考虑导阀的排气
（主阀与先导阀集中排气型［50-VFE3000］）
・可以集装(50-VFE)
・可作为选择阀或分配阀使用，也可用于真空 (50-VPE)
・集装底板型号：50-VV5FE3，50-VV5FE5
| 系列 | 形式 | 有效截面积mm2 (Cv) | 消耗功率（W） |
|---|---|---|---|
| 50-VFE3000 | 5通 | 18 (1.0) | 3.5 |
| 50-VFE5000 | 5通 | 45 (2.5) | 3.5 |
| 50-VPE500 | 3通 | 41.4 (2.3) | 3.5 |
| 50-VPE700 | 3通 | 72 (4) | 3.5 |
exploration proof 3/5-way solenoid valve
Exd II BT4 (TIIS certified product).
Waterproof property: equivalent to IP ※ 6
There is no need to consider the exhaust of the pilot valve first
(Main valve and pilot valve centralized exhaust type [50-VFE3000])
Can be containerized (50-VFE)
Can be used as a selector valve or distribution valve, as well as for vacuum (50-VPE)
Model of container bottom plate: 50-VV5FE3, 50-VV5FE5
