福尼Forney火检探头UniFlame II 系列

福尼Forney火检探头UniFlame  II 系列基于微处理器的控制器与固态红外（IR）和紫外线（UV）传感器以及双电池技术结合使用，以实现火焰探测和识别。

产品和配件：
UniFlame II®部分＃401116-01
UniFlame II CEX®部分＃401117-01
UniFlame II Wireless CEX®部分＃401118-01
不带连接器（内部接线盒）的UniFlame II，零件＃401116-11
用于UniFlame I改造的UniFlame II（1-12针快速断开连接器）零件＃401116-10
FEX软件部件号401116-04
可旋转安装的零件号＃91016-63
安装法兰1” NPT零件＃400487-01 1” BSP零件＃400487-06
电缆8芯快速连接部件＃401119-xx散装电缆部件＃401119-00
电缆12芯快速连接部件＃401120-xx散装电缆部件＃401120-00

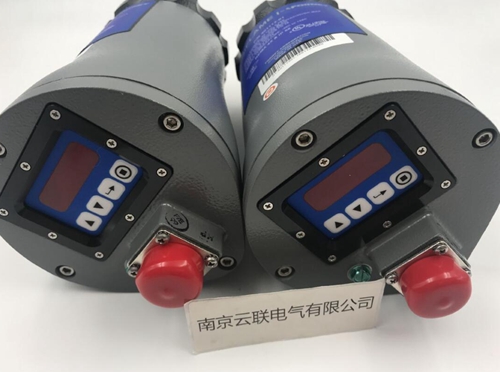

操作员界面：带有五个按钮的字母数字显示（部件号401116-03）或
与手持通讯工具（零件号118118-04）一起使用的红外发射器（零件号401118-03）。
UniFlame I到UniFlame II的转换盒部件号92527-03
线束零件号92527-04
UniFlame II冷却室标准版零件＃92527-01 CEX版零件零件＃92527-02
机械规格：

外壳材料：铸铝，灰色聚酯粉末涂层
外壳重量：5.9磅（2.69千克），7.1磅（3.22千克）CEX型号，附加法兰
环境：NEMA 4X，IP66
区域分类：标准：I类Div 2，A，B，C，D组，
II类Div 2，F＆G组
CEX版本：Ex d IIC T6
安装：需要两个螺纹安装法兰之一，单独订购
– 1英寸NPT内螺纹管道安装件，带有3/8英寸NPT内冷却空气接口。
– 1英寸BSP内螺纹管道安装件，带有3/8英寸BSP内冷却空气接口。
两个法兰都包含一个一体的绝热内螺纹插件（不需要绝热接头）。
安装法兰重量：0.62磅（0.28kg）

The UniFlame II series microprocessor-based controller of Forney flame detection probe is used in combination with solid-state infrared (IR) and ultraviolet (UV) sensors and dual battery technology to achieve flame detection and recognition.

Products and accessories:

UniFlame II ® Part # 401116-01

UniFlame II CEX ® Part # 401117-01

UniFlame II Wireless CEX ® Part # 401118-01

UniFlame II without connector (internal junction box), part # 401116-11

UniFlame II (1-12 pin quick disconnect connector) for UniFlame I modification Part # 401116-10

FEX software part No. 401116-04

Rotatable Mounting Part # 91016-63

Mounting flange 1 "NPT part # 400487-01 1" BSP part # 400487-06

Cable 8-core quick connection part # 401119 xx Bulk cable part # 401119-00

Cable 12 core quick connect part # 401120 xx Bulk cable part # 401120-00

Operator interface: alphanumeric display with five buttons (part number 401116-03) or

Infrared transmitter (part number 401118-03) for use with hand-held communication tool (part number 118118-04).

UniFlame I to UniFlame II conversion box part number 92527-03Harness part number 92527-04

UniFlame II cooling chamber standard version part # 92527-01 CEX version part # 92527-02

Mechanical specifications:

Shell material: cast aluminum, gray polyester powder coating

Shell weight: 5.9 lbs (2.69 kg), 7.1 lbs (3.22 kg) CEX model, additional flange

Environment: NEMA 4X, IP66

Area classification: Standard: Class I Div 2, Groups A, B, C, D,

Div 2, Group F&G, Class II

CEX Version: Ex d IIC T6

Installation: One of two threaded mounting flanges is required, order separately

– 1-inch NPT female pipe mount with 3/8-inch NPT internal cooling air connection.

– 1-inch BSP female pipe mount with 3/8-inch BSP internal cooling air connection.

Both flanges contain an integral thermal insulation internal thread insert (thermal insulation joint is not required).

Weight of mounting flange: 0.62 lb (0.28 kg)
