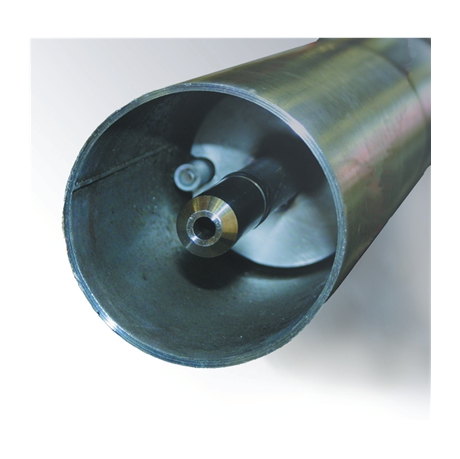

福尼Forney点火器 DURAFire 点火器是自稳定的,高度可靠的,几乎不需要维护。雾化发生在点火器的后部,远离尖端的热量,因此不会结垢或需要清洁。大多数应用不需要点火器缩回,从而减少了安装成本和日常维护。技术指标燃油:2号机油容量额定值*:6-33 MBtu / hr(1.76-9.67 MW)雾化介质:空气燃油压力:点火器上60 psig(4.22 kg / cm2)雾化空气:点火器压力:

详细介绍

福尼Forney点火器 DURAFire 点火器是自稳定的,高度可靠的,几乎不需要维护。雾化发生在点火器的后部,远离尖端的热量,因此不会结垢或需要清洁。大多数应用不需要点火器缩回,从而减少了安装成本和日常维护。

技术指标
燃油:2号机油
容量额定值*:6-33 MBtu / hr(1.76-9.67 MW)
雾化介质:空气
燃油压力:点火器上60 psig(4.22 kg / cm2)
雾化空气:点火器压力:80 psig(5.62 kg / cm2)
流量:0.40磅空气/ 1磅燃料
冷却/燃烧空气:流量:60 SCFM(点火器处)
压降:整个设备上约3英寸(76.2毫米)的WC
连接:1½英寸NPT母头
长度:
从24到180英寸(609到4572毫米)以2英寸(50.8毫米)的增量提供
导管外径:4英寸(101.6毫米)–点火器可以安装在直径为4英寸(101.6毫米)的设备的现有安装管中
安装管外径:4.5英寸(114.3毫米)
建筑材料:导管和安装管–碳钢
导管的炉端– 304不锈钢
油嘴组件– 304不锈钢
根据客户要求的回缩组件
油嘴组件根据需要窄或广角

NFPA 1、2或3级

The UniFlame II series microprocessor-based controller of Forney flame detection probe is used in combination with solid-state infrared (IR) and ultraviolet (UV) sensors and dual battery technology to achieve flame detection and recognition.

Products and accessories:

UniFlame II ® Part # 401116-01

UniFlame II CEX ® Part # 401117-01

UniFlame II Wireless CEX ® Part # 401118-01

UniFlame II without connector (internal junction box), part # 401116-11

UniFlame II (1-12 pin quick disconnect connector) for UniFlame I modification Part # 401116-10

FEX software part No. 401116-04

Rotatable Mounting Part # 91016-63

Mounting flange 1 "NPT part # 400487-01 1" BSP part # 400487-06

Cable 8-core quick connection part # 401119 xx Bulk cable part # 401119-00

Cable 12 core quick connect part # 401120 xx Bulk cable part # 401120-00

Operator interface: alphanumeric display with five buttons (part number 401116-03) or

Infrared transmitter (part number 401,118-03) for use with hand-held communication tool (part number 118,118-04).

UniFlame I to UniFlame II conversion box part number 92527-03

Harness part number 92527-04

UniFlame II cooling chamber standard version part # 92527-01 CEX version part # 92527-02

Mechanical specifications:

Shell material: cast aluminum, gray polyester powder coating

Shell weight: 5.9 lbs (2.69 kg), 7.1 lbs (3.22 kg) CEX model, additional flange

Environment: NEMA 4X, IP66

Area classification: Standard: Class I Div 2, Groups A, B, C, D,

Div 2, Group F&G, Class IICEX Version: Ex d IIC T6


Installation: One of two threaded mounting flanges is required, order separately

– 1-inch NPT female pipe mount with 3/8-inch NPT internal cooling air connection.

– 1-inch BSP female pipe mount with 3/8-inch BSP internal cooling air connection.

Both flanges contain an integral thermal insulation internal thread insert (thermal insulation joint is not required).

Weight of mounting flange: 0.62 lb (0.28 kg)
