福尼Forney检测器 DPD

福尼Forney检测器 DPD

具有自动UV或IR调节功能的自包含检测器。 输入功率和输出火焰信号通过坚固的军用连接器制成。
规格
安装：1英寸NPT观察管配件
3/8” NPT吹扫空气接头
材质：压铸铝外壳，磨砂黑，防滑
完
电气：24 VDC（可从相关的Forney放大器获得）
额定电流：60mA
温度：超级蓝：-4°F至+ 131°F
-20°C至+ 55°C
经典：-4°F至+ 150°F
-20°C至+ 65°C
湿度：0-95％Rh不凝结
重量：2.4磅 （1.1公斤）
冷却空气：10 SCFM @ 6” WC（15 SCFM @ 10” WC，带光纤）
认证：互助工厂，CE（咨询系统工厂
组态）
传感器/波长：超蓝模型–超蓝硅电池/ 290 – 390 nm

Forney detector DPD

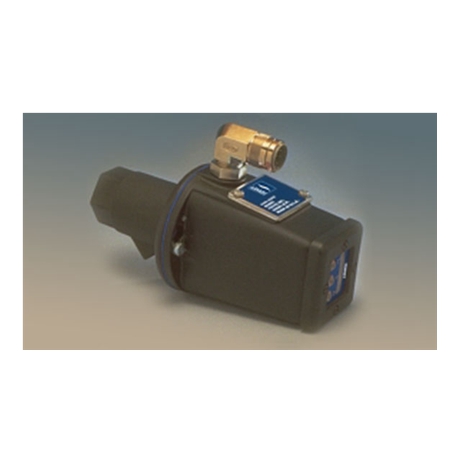

Self contained detector with automatic UV or IR adjustment function. The input power and output flame signal are made of solid military connectors.

Specifications

Installation: 1 inch NPT observation pipe fitting

3/8 "NPT PURGE AIR CONNECTION

Material: die-casting aluminum shell, frosted black, anti-skid

finish

Electrical: 24 VDC (available from the relevant Forney amplifier)

Rated current: 60mA

Temperature: Super Blue: - 4 ° F to+131 ° F

-20 ° C to+55 ° C

Classic: - 4 ° F to+150 ° F

-20 ° C to+65 ° C

Humidity: 0-95% Rh, non condensing

Weight: 2.4 lbs (1.1 kg)

Cooling air: 10 SCFM @ 6 "WC (15 SCFM @ 10" WC with optical fiber)

Certification: Mutual Aid Factory, CE (Consulting System Factory

Configuration)

Sensor/wavelength: ultrablue model – ultrablue silicon cell/290 – 390 nm
