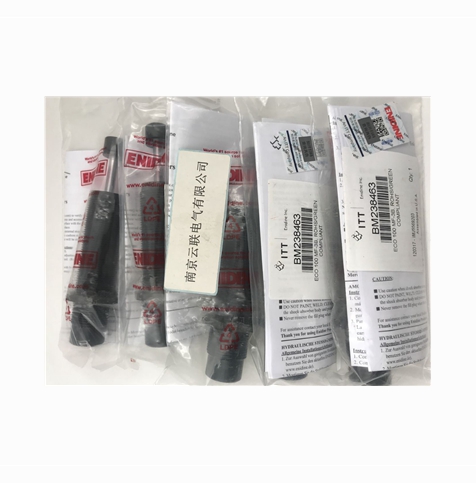

Enidine(安力定)缓冲器ECO 100FM-3B

Enidine(安力定)缓冲器ECO 100FM-3B

Enidine(安力定)缓冲器ECO 100FM-3B技术参数范围外缸径螺纹:M 10X1.0-M 115X2单次最大吸收能量:5.5J-19200J冲击速度:0.08m/s-4.5m/s缓冲行程:7.0mm-250.0mmLROEM低速可调系列产品可以控制速度低至0.08m/s,而驱动力高达17790N。性能及优点:1.可调型设计,可以根据阻尼力大小,并将值锁定。2.内孔设计,可以在有效的阻尼系Endine buffer ECO 100FM-3BTechnical parameter rangeExternal cylinder diameter thread: M 10X1.0 - M 115X2Single maximum absorbed energy: 5.5J - 19200JImpact speed: 0.08m/s-4.5m/sBuffer stroke: 7.0mm-250.0mmLROEM low-speed adjustable series products can control the speed as low as 0.08m/s and the driving force as high as 17790N.Performance and advantages:1. Adjustable design, the value can be locked according to the damping force.2. The inner hole design can achieve good deceleration performance under effective damping coefficient, and achieve small rebound effect in the reducer field.3. The external thread cylinder block increases the heat dissipation area and makes the installation more flexible4. The ingenious combination of special seal and special oil can increase the standard operating temperature range from (- 10 C~80 C) to (- 30 C~100 C)5. Various finish machined surfaces maintain the appearance of original materials and provide long-term corrosion resistance.6. Adjustable parameters enable ENIDINE to be used in a wider range, from low-speed products to high-performance products.7. ISO certification standard, reliable operation and long service life8. User defined fixed orifice series products (CBOEM) can meet the needs of special applications.

详细介绍

Enidine(安力定)缓冲器ECO 100FM-3B


技术参数范围
外缸径螺纹:M 10X1.0-M 115X2
单次最大吸收能量:5.5J-19200J
冲击速度:0.08m/s-4.5m/s
缓冲行程:7.0mm-250.0mm
LROEM低速可调系列产品可以控制速度低至0.08m/s,而驱动力高达17790N。
性能及优点:
1.可调型设计,可以根据阻尼力大小,并将值锁定。
2.内孔设计,可以在有效的阻尼系数下,减速性能良好,取得在减速器领域中小的反弹力效果。
3.外螺纹缸体,增大散热面积,安装更加灵活
4.专用密封与特种油液的巧妙结合,可以提高标准的工作温度范围:从(-10°C~80°C)扩大到(-30°C~100°C).
5.各种精加工的表面,保持了原有材质的外观,提供长久的抗腐蚀保护能力。
6.可调参数,使得ENIDINE(安力定)使用范围更广,从低速型到高性能产品。
7.ISO认证标准,产品运行可靠,使用寿命长。.
8.用户自定义的固定节流孔系列产品(CBOEM)可以满足特殊应用需要。

Endine buffer ECO 100FM-3B


Technical parameter range


External cylinder diameter thread: M 10X1.0 - M 115X2


Single maximum absorbed energy: 5.5J - 19200J


Impact speed: 0.08m/s-4.5m/s


Buffer stroke: 7.0mm-250.0mm


LROEM low-speed adjustable series products can control the speed as low as 0.08m/s and the driving force as high as 17790N.


Performance and advantages:


1. Adjustable design, the value can be locked according to the damping force.


2. The inner hole design can achieve good deceleration performance under effective damping coefficient, and achieve small rebound effect in the reducer field.


3. The external thread cylinder block increases the heat dissipation area and makes the installation more flexible


4. The ingenious combination of special seal and special oil can increase the standard operating temperature range from (- 10 ° C~80 ° C) to (- 30 ° C~100 ° C)


5. Various finish machined surfaces maintain the appearance of original materials and provide long-term corrosion resistance.


6. Adjustable parameters enable ENIDINE to be used in a wider range, from low-speed products to high-performance products.


7. ISO certification standard, reliable operation and long service life


8. User defined fixed orifice series products (CBOEM) can meet the needs of special applications.
