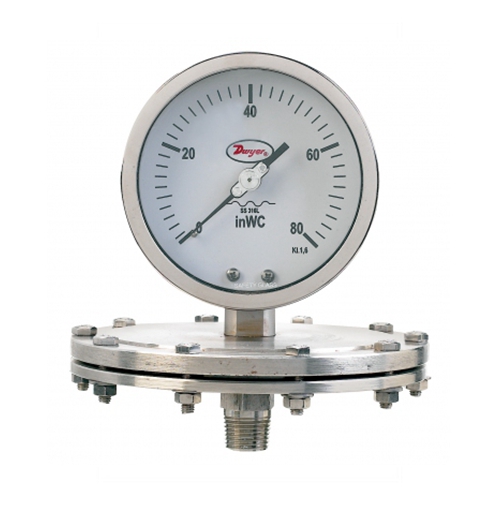

Dwyer压力表SGPpressure gauge SGP

Dwyer压力表SGP

不锈钢低压表

SGP系列 不锈钢低压表带公制/英制双刻度，精度为1.6%。它采用304不锈钢的外壳，316L不锈钢的内室和316不锈钢的膜片，具备优良的抗化学腐蚀性能。 SGP系列能承受外部温度到65摄氏度，过程温度到120摄氏度。有真空，正压，正负组合量程范围到235英寸水柱。

产品规格：

介质：兼容气体和液体

连接件材质：316L不锈钢的内室和316不锈钢的膜片

外壳：304不锈钢

精确度：±1.6% FS，

压力范围：130%FS

温度范围：-13 to 149°F (-25 to 65°C); 特殊加工: 248°F (120°C).

尺寸： 4" (100 mm)

连接件尺寸：1/2" male NPT.

重量：3.1 lb (1.4 kg)..

外壳防护等级：NEMA 3 (IP54)

Dwyer pressure gauge SGP

Stainless steel low pressure gauge

SGP series stainless steel low pressure watch with metric/English double scale, with accuracy of 1.6%. It adopts 304 stainless steel shell, 316L stainless steel inner chamber and 316 stainless steel diaphragm, with excellent chemical corrosion resistance. SGP series can withstand external temperature to 65 ℃ and process temperature to 120 ℃. There are vacuum, positive pressure, positive and negative combined range to 235 inches of water column.

Product specification:

Medium: compatible with gas and liquid

Connection material: 316L stainless steel inner chamber and 316 stainless steel diaphragm

Shell: 304 stainless steel

Accuracy: ± 1.6% FS,

Pressure range: 130% FS

Temperature range: - 13 to 149 ° F (- 25 to 65 ° C); Special processing: 248 ° F (120 ° C)

Size: 4 "(100 mm)

Connection size: 1/2 "male NPT

Weight: 3.1 lb (1.4 kg)

Enclosure protection grade: NEMA 3 (IP54)
