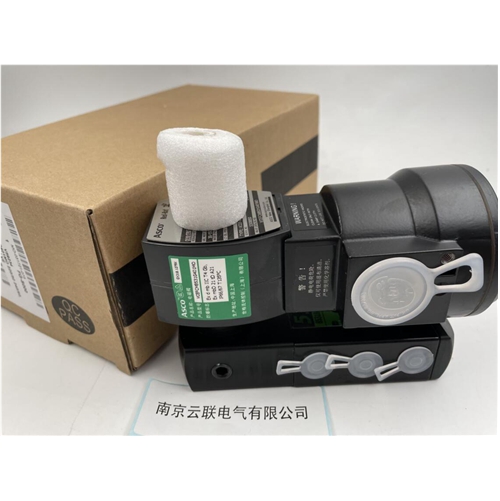

ASCO 电磁阀 solenoid valve VCEFCMB531G40IMO

ASCO 电磁阀  solenoid valve  VCEFCMB531G40IMO

美国ASCO电磁阀技术参数:

动作方式:直动型、先导型、反冲型(无压差型)。

根据口径大小、介质压力选择其中-种。

控制方式:常闭式、常开式。根据工况要求选择。

电源电压: AC24V、AC36V、AC127V、 AC220V. AC380V。

DC12V、DC24V. DC36V. DC72V. DC110V. DC220V。

根据工况要求选择。

介质温度: -50- -60C、-200- -60C. 0- -60C、 0- -120C、0- -200C、 0- -250C、 0- -300C、0- -350C根据工况要求选择。

环境温度: -10- -40C、-20- -40C、-40- -40C、-10- -60C。根据I况要求选择。

联接方式:内螺纹连接、法兰连接。根据工况要求选择。但是通径超过DN50 ,均为法兰连接。

阀体材质:球墨铸铁、铸钢、304不锈钢、316不锈钢。?根据I况要求选择。

美国ASCO电磁阀工作性质:电磁阀-般流通系数很小,而且工作压力差很小。

比如一般25口径的电磁阀流通系数比15口径的电动球阀小很多。

电磁阀的驱动是通过电磁线圈,比较容易被电压冲击损坏。

相当于开关的作用,就是开和关2个作用。

电磁阀-般断电可以复位,电动阀要这样的功能需要加复位装置。

ASCO solenoid valve VCEFCMB531G40IMO

Technical parameters of ASCO solenoid valves in the United States:

Action mode: direct action type, pilot type, recoil type (no pressure difference type).

Choose one of them based on the caliber size and medium pressure.

Control mode: normally closed or normally open. Select according to the requirements of the working conditions.

Power supply voltage: AC24V, AC36V, AC127V, AC220V AC380V。

DC12V、DC24V. DC36V. DC72V. DC110V. DC220V。

Select according to the requirements of the working conditions.

Medium temperature: -50-60C, -200-60C 0-60C, 0-120C, 0-200C, 0-250C, 0-300C, 0-350C are selected according to the working conditions.

Environmental temperature: -10-40C, -20-40C, -40-40C, -10-60C. Select according to the requirements of condition I.

Connection method: internal thread connection, flange connection. Select according to the requirements of the working conditions. However, if the diameter exceeds DN50, all connections are flange connections.

Valve body material: ductile iron, cast steel, 304 stainless steel, 316 stainless steel.? Select according to the requirements of condition I.

The working properties of ASCO solenoid valves in the United States: The general flow coefficient of the solenoid valve is very small, and the working pressure difference is very small.
