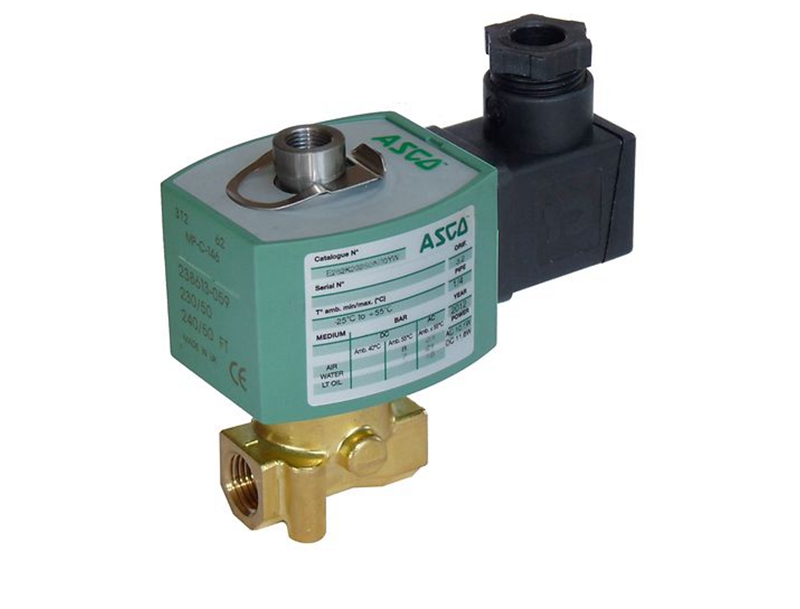

ASCO电磁阀 EF8314H301DC24/DCD

ASCO电磁阀 EF8314H301DC24/DCD

规格

气门执行电磁阀直接作用

阀体材料黄铜;不锈钢

MediaAir，惰性气体;轻质油;水

管道/端口尺寸1/8“; 1/4”

端口类型NPTF

功能3路-3/2常闭; 3路-3/2常开; 3路-3/2通用

流量从0.5 Cv到1.0 Cv

电压100至240交流/直流电压范围; 110交流; 115交流电; 12直流电; 12至，

24直流电压范围; 120交流; 120直流电; 125直流电池充电; 220交流; 24

交流; 24直流电; 24至120交流/直流电压范围; 240交流-50; 50/60 ; 60

操作环境危险;室内的户外的

标准/法规第一类第1部分 ; Cla

ASCO系列314，也称为8314 ,是一系列直接作用的通用电磁阀，可用作小

型控制阀和执行机构的中等流量先导。该阀门只有一个弹簧和两个运动部

件,非常适合基本的三通先导操作。适用于分析和诊断设备、汽车、灌装、

除尘系统和生命科学应用

Specifications

Valve ActuationSolenoid - Direct Acting

Body MaterialBrass; Stainless Steel

MediaAir, Inert Gas; Light Oil; Water

Pipe / Port Size1/8 "; 1/4 "

Port TypeNPTF

Function3 way - 3/2 Normally Closed; 3 way - 3/2 Normally Open; 3 way - 3/2 Universal

FlowFrom 0.5 Cv to 1.0 Cv

Voltage100 to 240 AC/DC Voltage Ranging; 110 AC; 115 AC; 12 DC; 12 to 24 DC Voltage Ranging; 120 AC; 120 DC; 125 DC Battery Charging; 220 AC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 240 AC - 50; 50/60; 60

Operating EnvironmentHazardous; Indoor; Outdoor

Standards / RegulationsClass I Div 1; Cla

The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science
