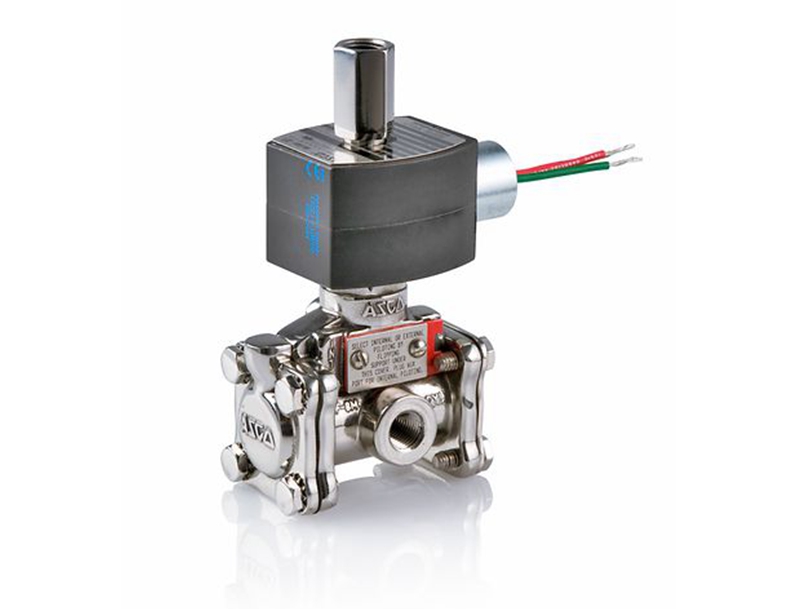

ASCO电磁阀8316G081

ASCO电磁阀8316G081

规格

气门执行电磁阀-直接作用

阀体材料不锈钢

介质空气，惰性气体

管道/端口尺寸1/4“

端口类型NPTF

功能3路-3/2常闭

流量1.50Cv

电压100至240交流/直流电压范围; 12至24直流电压范围; 125直流电池充

电; 110交流; 12直流电; 120交流; 120直流电; 24交流; 24直流电; 24至

120交流/直流电压范围; 250直流电池充电; 240-50 ; 50/60 ; 60

操作环境危险;室内的户外的

标准/法规ATEX 0-20区; - -级1区; -级2区; CSA; IEC Ex0-20区; SIL ;

类型1;类型2;类型3;3S型;类型4;4X型;类型6;6P型;类型7;类型

9; ULSpecifications

Valve ActuationSolenoid - Direct Acting

Body MaterialStainless Steel

MediaAir, Inert Gas

Pipe / Port Size1/4"

Port TypeNPTF

Function3 way - 3/2 Normally Closed

Flow1.50 Cv

Voltage100 to 240 AC/DC Voltage Ranging; 12 to 24 DC Voltage Ranging; 125 DC Battery Charging; 110 AC; 12 DC; 120 AC; 120 DC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 250 DC Battery Charging; 240 - 50; 50/60; 60

Operating EnvironmentHazardous; Indoor; Outdoor

Standards / RegulationsATEX Zone 0-20; Class I Div 1; Class I Div 2; CSA; IEC Ex Zone 0-20; SIL; Type 1; Type 2; Type 3; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL
