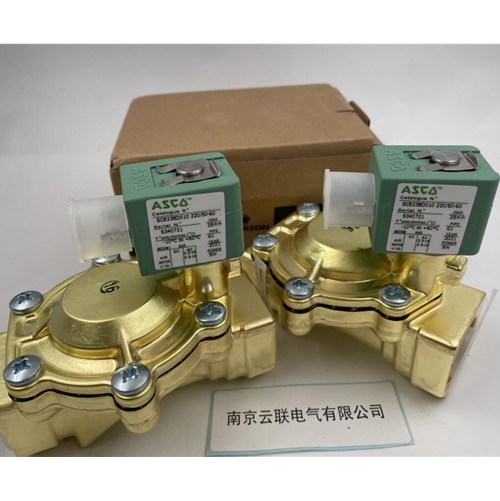

阿斯卡ASCO低功耗电磁阀 Low power solenoid valveSCE238D010

阿斯卡ASCO低功耗电磁阀 Low power solenoid valveSCE238D010

低功耗电磁阀，纽曼蒂克SCE238D010应用于医疗机械、太阳能、清洗设备、食品机械、燃烧器、受电控信号后能自动开启或关闭阀门，实现对管道中流体介质的通断或流量调节控制，从而对系统中的温度、流量控制

产品特性

小操作压差AP 0,3/0,5 bar

水、空气和惰性气体自动控制双路阀与所使用的密封材料相匹配的其他气体/液体

●磁头交直流互换性

●电磁阀满足所有相关的欧盟指令

与流体接触的材料(=) Ensure兼容的液体接触材料验证

身体黄铜吗内部部件为不锈钢和黄铜弹簧不锈钢

隔膜和阀瓣NBR

密封和引|导阀瓣FPM

阴影线圈铜

电特性.

线圜绝缘等级F

连接器铲插头(电缆06 - 8毫米或06 - 10毫米)

连接器规格

用于功率线圈:4 W/6,9 W DIN 43650, 11 mm,工业标准B

电源线固:5/6,9W-8/9W-12,5/9W ISO 4400 / EN 175301-803 ,表格A

电气安全IEC 335

电气外壳防护模制IP65 (EN 60529)

标准电压DC(=): 24V - 48V

交流(~):24V - 48V- 115V - 230V / 50hz

EFG551H417 WT8551A001MS 8320G174 EF8320G174  8320G184 EF8320G184 8320G176 EF8320G176 EF8320G203

EF8320G202 EF8320G200 HT8316G64 HT8316G66 EF8210G1 EF8210G001

EFG551A001MS G551A001MS EFG551A002MS G551A002MS EFG551H401MO G551B401MO EF8551A001MS SCG551A001MS

G551A001MS SCG551A002MS G551A002MS WSNF8327B102 WSNF8327B112 SCG531D001MS SCG531D002MS 238610-058-D

238714-158-D 400425-117 SP-COU-24VDC EF8320G186 8320G186 EF8210G089 HB8320G174 EF8340G1 EF8342G001

SCG531D001MS SCG531D002MS VCEFG551H417

Low power solenoid valve, Neumann Tec SCE238D010, is applied to medical machinery, solar energy, cleaning equipment, food machinery, burners, and can automatically open or close the valve after receiving an electrical control signal, achieving on/off or flow regulation control of the fluid medium in the pipeline, thereby controlling the temperature and flow in the system

Product characteristics

Small operating pressure difference AP 0,3/0,5 bar

Water, air, and inert gas automatic control dual valve matched with other gases/liquids using sealing materials

● Magnetic head AC/DC interchangeability

The solenoid valve meets all relevant EU directives

Verification of Liquid Contact Materials Compatible with Fluid Contact Materials (=) Ensure

Is the body brass? The internal components are stainless steel and brass spring stainless steel

Diaphragm and Disc NBR

Sealing and guide valve disc FPM

Shadow coil copper

Electrical characteristics

Insulation level F of wire

Connector shovel plug (cable 06-8 mm or 06-10 mm)

Connector specifications

For power coils: 4 W/6,9 W DIN 43650, 11 mm, industrial standard B

Power cord fixation: 5/6,9W-8/9W-12,5/9W ISO 4400/EN 175301-803, Table A

Electrical safety IEC 335

Electrical enclosure protection molded IP65 (EN 60529)

Standard voltage DC (=): 24V -48V

AC (~): 24V -48V -115V -230V/50Hz
