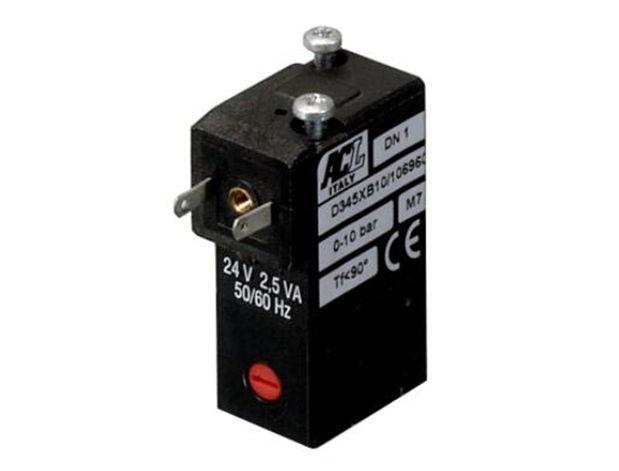

ACL 2位3通直动式常闭电磁阀

详细介绍

3/2 Direct Acting NO
TYPE	PORT SIZE	ORIFICE		Kv	DIFFERENTIAL PRESSURE ΔP bar			NOMINAL POWER			COIL		SEAL	TEMPERATURE RANGE
		mm		m3/h	MIN	MAX		AC-VA		DC	width	TYPE		TEMPERATURE RANGE
		1-2	2-3	m3/h	MIN	AC	DC	INRUSH	HOLDING	W	width	TYPE		°C
307	G 1/8	1.2 1.5	1.2 1.2	0.04 0.06	0 0	12 9	8 6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
313	25 Flangia base	1.2 1.5	1.2 1.2	0.04 0.06	0 0	12 9	8 6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +130
322-325 NO - Series 320	G 1/4	7.5	7.5	0.64	0	9	9	40	30	27	36	5	FPM	-10 +140
337	Connessioni Rapide	1.5	1.5	0.06	0	9	6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
351	G 1/4 M12X1,5	1.5 1.7 1.7 1.5 1.7 1.7	1.5 1.7 1.7 1.5 1.7 1.7	0.06 0.08 0.08 0.06 0.08 0.08	0 0 0 0 0 0	10 8 10 10 8 10	10 8 10 10 8 10	12 12 15 12 12 15	8 8 11 8 8 11	6.5 6.5 5 6.5 6.5 5	22 22 30 22 22 30	3 3 4 3 3 4	NBR EPDM FPM	-10 +90 -10 +140 -10 +130
306 NO	G1/4"	2.4 2.9	2.5 3	0.16 0.20	0 0	9 6.5	9 6.5	20	15	10	30	2	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
304 NO	G 1/8 M5	1.5	1.5	0.06	0	10	10	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
305 NO	G 1/8	1.5 1.7	1.5 2	0.06 0.07	0 0	10 6	10 6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
310 NO	G 1/4	2.4 2.9	2.5 3	0.16 0.20	0 0	9 6.5	9 6.5	20	15	10	30	2	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
311 NO	G 1/8	1.5 1.7	1.5 2	0.06 0.07	0 0	10 6	10 6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
312 NO	25 Flangia base	1.5	1.5	0.06	0	10	10	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
314 NO	Flangia Base	2.4 2.9	2.5 3	0.16 0.20	0 0	9 6.5	9 6.5	20	15	10	30	2	NBR EPDM FPM	-10 +90 -10 +140 -10 +140
370 NO	1/4	2.4	2.5	0.16	0	9	9	20	15	10	30	2	NBR FFKM EPDM FPM	-10 +90 -10 +180 -10 +140 -10 +140
371 NO	1/8	1.5	1.5	0.06	0	15 10 6	15 10 6	12	8	6.5	22	3	NBR EPDM FPM	-10 +90 -10 +140 -10 +1
