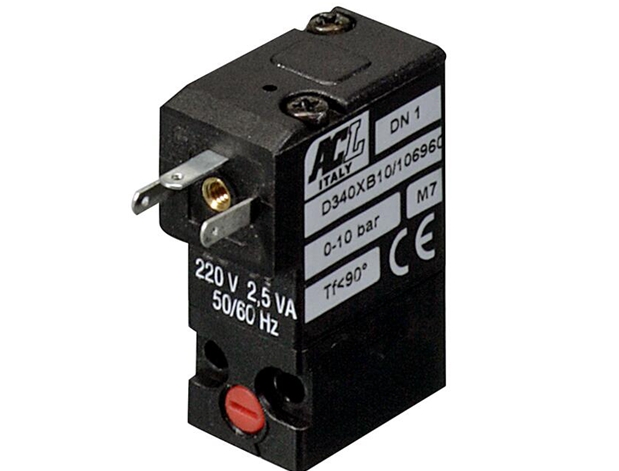

ACL 2位3通微型阀常闭341-343

ACL 2位3通微型阀常闭341-343

说明

电磁阀3路

直接作用提升阀型

构造

本体缩醛共聚物

内部零件缩醛共聚物-不锈钢

密封材料NBR

功能

固定方式: M3螺钉

最大扭矩0.5牛米

通用安装位置

流体温度:最高+50°C

环境温度:-15°C+50°C

流体:空气、中性气体

响应时间: 10-15ms

手动超控:封闭双稳态功能

电气操作特性

占空比: ED100%

绝缘等级:F(+155*C)

电压公差: +10%

防护等级:电缆IP65

快接IP0O ,带连接器

安装IP65

电气连接:电缆( L=300mm )

AMP 2.8x0.5

DIN 43650C

DESCRIPTION

Solenoid valve 3 way

direct acting poppet type

CONSTRUCTION

Body Acetal copolymer

Internal parts Acetal copolymer - Stainless steel

Seal material NBR

FEATURES

Fixing method: M3 screws

max torque 0,5Nm

Universal mounting position

Fluid temperature: +50°C max

Ambient temperature: -15°C +50°C

Fluid: Air, neutral gases

Response time: 10- 15ms

Manual override: Enclosed bi-stable function

EL ECTRICAL OPERATING FEATURES

Duty cycle: ED100%

Insulation class: F (+155°C)

Voltage tolerance: +10%

Protection class: Cables IP65

Fast-on IP0O, with connector

fited IP65

Electrical connection: Cables (L =300mm)

AMP 2.8x0.5

DIN 43650C

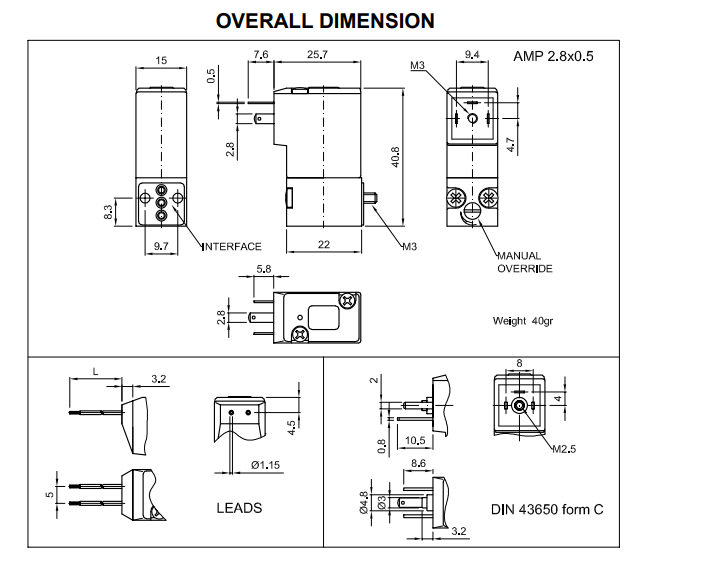

3/2 Micro NO

TYPE

PORT SIZE

ORIFICE

NOMINAL RATE

DIFFERENTIAL PRESSURE

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

NI/1 Pa 6bar ΔP=1bar

MIN

MAX

AC-VA

DC

AC 24V

AC 110V

AC 220V

DC 12V

DC 24V

1-2

2-3

INRUSH

HOLDING

W

°C

341-343 NO - 15mm Series 340

Flange

1 1

1.2 1.2

26 26

0 0

8 8

3.6 3.6

2.5 2.5

2.5 2.5

107030

107060

107050

106950

106960

NBR
